ICON 2025+ Toyota 4Runner 4WD, 1.25-3" Lift, Stage 1 Suspension System

Unlock the true off-road potential of your 6th Gen Toyota 4Runner 4WD with the ICON Vehicle Dynamics Stage 1 Suspension System. Engineered for superior performance both on and off the pavement, this introductory system provides exceptional vehicle control and a drastically improved ride quality over stock.

The Stage 1 kit features vehicle-specific tuned 2.5 Series Coilover Shocks with internal reservoirs for consistent damping and cooling, providing 1.25–3 inches of adjustable front lift. This lift height allows for the use of larger, more aggressive tires. The rear utilizes ICON 2.0 Aluminum Series shocks paired with dual-rate coil springs that deliver on-road comfort with the necessary bottom-out resistance and 0.75 inches of rear lift for a level stance. Combined with a front differential drop kit to maximize wheel travel and prevent CV bind, the Stage 1 system is the ideal foundation for any serious overlander looking to enhance their 4Runner's capabilities in the dirt.

Features & Benefits:

• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Increased wheel travel and improved ride quality over stock
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• Adjustable 2.5 Series coilovers provide 1.25-3" front lift height over stock
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual rate rear coil springs improve performance and ride quality while providing .75" of rear lift
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts

Tech Info:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #1: Only fits 4WD models
• APPLICATION NOTE #4: Advertised lift heights based on models equipped with gasoline engine
• APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required
• APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
• APPLICATION NOTE #150: Shocks are fully serviceable
• APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• APPLICATION NOTE #202: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift

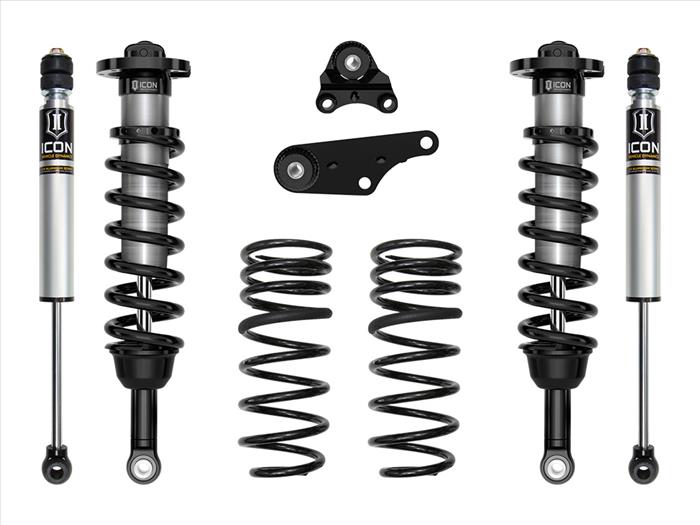

Components:

• (QTY: 1) | 25 4RUNNER 4WD FRONT 2.5 VS IR COILOVER KIT
• (QTY: 1) | 24-25 TACOMA 4WD/24-25 LC250/25 T4R 4WD FRONT DIFF DROP KIT
• (QTY: 1) | 25 4RUNNER .75" DUAL RATE REAR SPRING KIT
• (QTY: 2) | 25 4RUNNER 0-3" REAR 2.0 VS IR
