O2 Fabrication 2005-2023 Toyota Tacoma Rear Shock Relocation

The O2 Fabrication Toyota Tacoma Rear Shock Relocation kit is designed to optimize rear suspension performance by delivering a strong, compact mounting solution for larger aftermarket smooth body shocks. Engineered for tight clearance around the bed and chassis, this setup accommodates smooth body shocks up to 2.5” x 14” while preserving maximum clearance for varying wheel setups.

Key Features

• Optimized Shock Geometry: Holds up to 2.5" x 14" smooth body shocks to unlock maximum rear wheel articulation on high-speed sections and technical trails.
• Structural Bed Support: Upper mounting plates directly tie into the factory bed structure minimizing flex under hard cycling.
• 3D-Scanned Precision: Designed using high-precision 3D chassis scans and CAD modelling to maintain a low profile against the frame rail for maximum tire clearance.
• Adjustable Lower Mount Placement: Rotatable lower mounting tabs allow custom tuning of your shock angle and fitment based on your specific leaf spring and bump-stop configuration.
• Captured Mounting Nut: Upper shock mounting nut is captured to the shock tower to aid in installing your larger shocks.

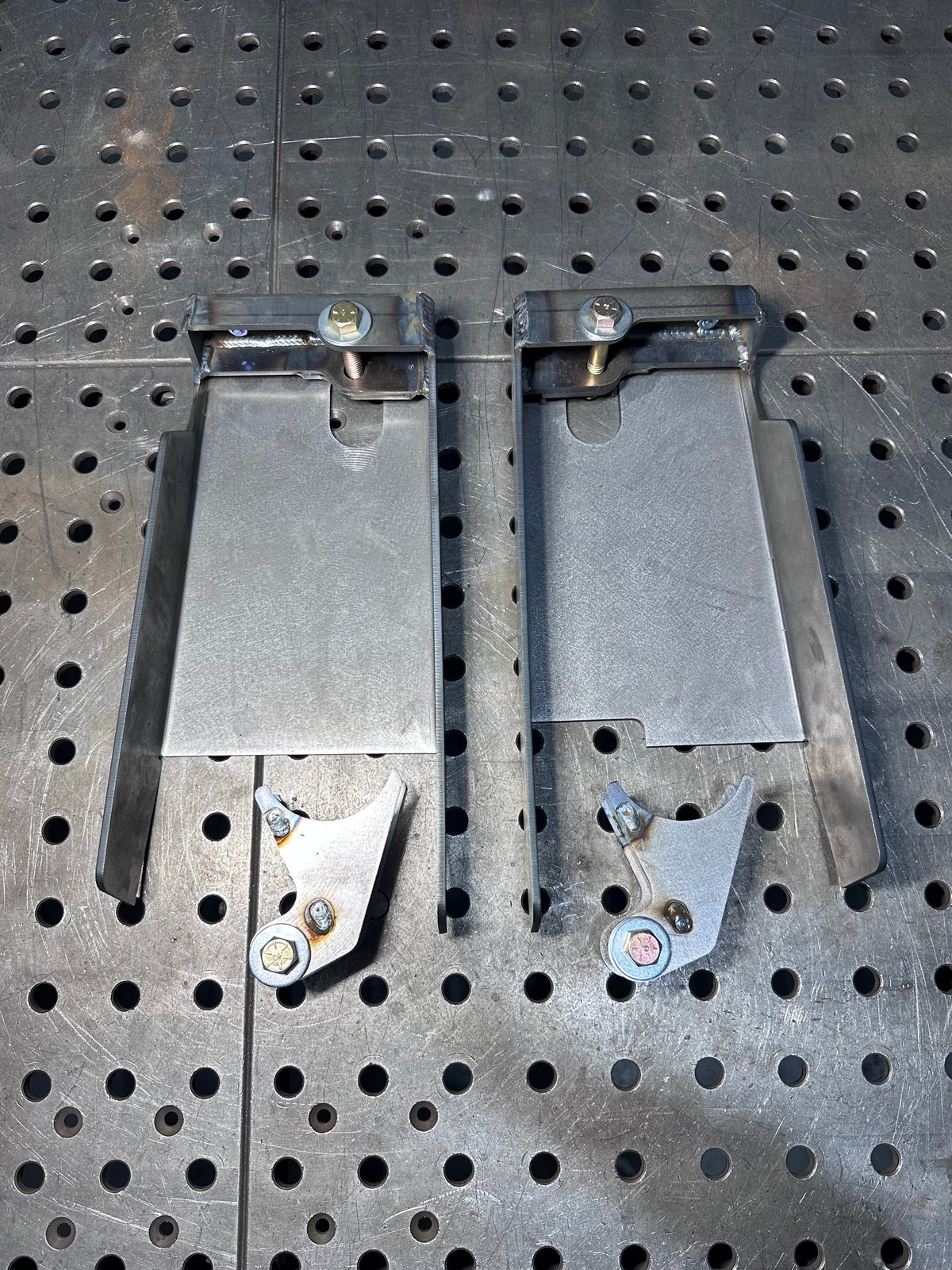

What’s Included

• 1x Driver-Side Shock Relocation Tower
• 1x Passenger-Side Shock Relocation Tower
• 2x Lower Shock Relocation Mounts
• 2x Shock Tower Upper Mounting Plates
• 4x 1/2" x 2-1/2" Flanged Hex Bolts
• 4x 1/2" Flanged Hex Nuts
• 4x M8 x 25 Flanged Hex Bolts
• 4x M8 Flanged Hex Nuts

6ft. variant ships with shock tower spacers and longer M8 bolts

Pro Tip: Cycle your suspension before fully welding the lower shock mount. This allows you to verify the mounting location and clearance between the shock body and the frame before executing final welds. It is highly recommended to pair this kit with extended aftermarket brake lines to prevent over-extending factory lines at full droop. In some applications limit straps are required.
