Name: ARCHIVE GARAGE TACOMA 2005-2023 EXPLORER SERIES HEAVY DUTY LIFT LEAF SPRINGS (PAIR)
Brand: Archive Garage
SKU: AR-HD-ES-1
Price: 1549.99 CAD
Availability: InStock

ARCHIVE GARAGE TACOMA 2005-2023 EXPLORER SERIES HEAVY DUTY LIFT LEAF SPRINGS (PAIR)

$1,549.99 CAD

U-bolts

W/ U-bolts

No U-bolts

[{"id":45320545403103,"title":"W\/ U-bolts","option1":"W\/ U-bolts","option2":null,"option3":null,"sku":"AR-HD-ES-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ARCHIVE GARAGE TACOMA 2005-2023 EXPLORER SERIES HEAVY DUTY LIFT LEAF SPRINGS (PAIR) - W\/ U-bolts","public_title":"W\/ U-bolts","options":["W\/ U-bolts"],"price":154999,"weight":80000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"continue","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45320545435871,"title":"No U-bolts","option1":"No U-bolts","option2":null,"option3":null,"sku":"AR-HD-ES-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ARCHIVE GARAGE TACOMA 2005-2023 EXPLORER SERIES HEAVY DUTY LIFT LEAF SPRINGS (PAIR) - No U-bolts","public_title":"No U-bolts","options":["No U-bolts"],"price":144999,"weight":80000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"continue","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

Features:

-Archive Tacoma Heavy Duty leaf packs are designed by Archive for severe duty off road travel!

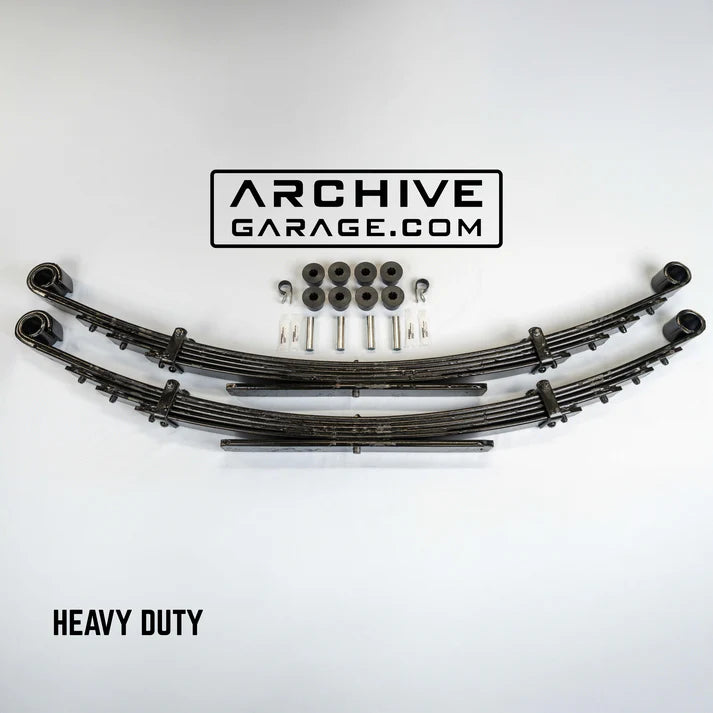

-Made in USA with 5160 US steel, tip insert pads, FULL military wrap (only brand in HD range), bolted spring clips, and high quality poly bushings are included in price.

-Archive springs were tested for 2 years on dozens of Tacomas

-Carefully designed to NOT have interference issues so common with aftermarket springs in the Tacoma market

-Intended for 600-1250 lbs added to rear axle weight, to endure heavy payloads.

-Lift height: (vs stock unloaded 4WD DCSB) is estimated at about: 3" with 700 lbs, and 2.5" with 1250 lbs added to rear axle weight on Double Cab

-We recommend always having minimum of 500lbs added to rear axle weight so lift (4.0"+ unloaded) is not excessive, but ride is good.

-There is NOT a left or right version, If one spring has a hair more arch, use it on driver side. Load your vehicle accordingly + adjust LF coilover so front helps rear.

-These HD springs deliver 12"+ travel with Archive Hammer Hangers and shock relocation.

-Archive Hammer Hangers are recommended for best ride and handling possible.
