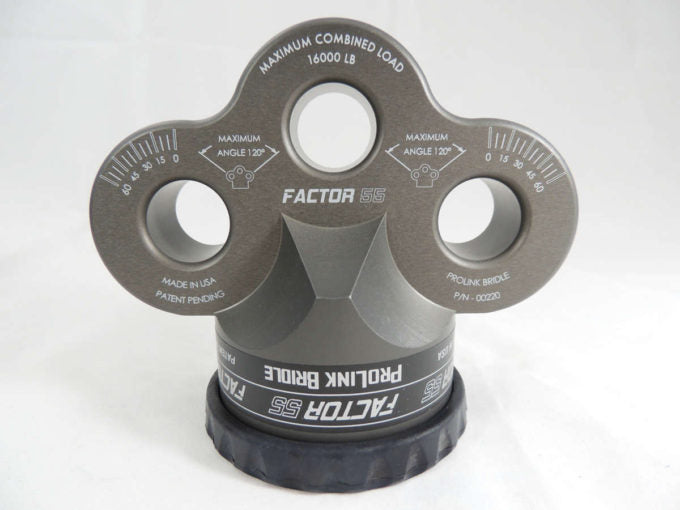

Factor 55 ProLink Bridle

The ProLink Bridle provides winch owners with a means to replace the conventional winch hook with a safer and stronger screw pin shackle/D-ring. The ProLink Bridle is a multiple shackle mount product designed for winch cables.  The ProLink Bridle is a specialized commercial product designed primarily for the towing industry.

Info and Specs:

Machined from 6000 series billet aluminum.

5/8 diameter Titanium double shear pin

4.5 inches tall, 5.25 inches in wide, 3.5 inch base diameter

Working Load Limit of 16,000 pounds

Ultimate failure of greater than 42,000 pounds

Fits all steel cables and synthetic ropes up to 3/8inch diameter

EPDM “Rubber Guard” protects alloy Hawse fairleads and cushions line stowage

Simple snap ring shear pin retainment



$0.00

Factor 55 ProLink Bridle
$0.00
Color
Yellow
Gray
$0.00

The ProLink Bridle provides winch owners with a means to replace the conventional winch hook with a safer and stronger screw pin shackle/D-ring. The ProLink Bridle is a multiple shackle mount product designed for winch cables.  The ProLink Bridle is a specialized commercial product designed primarily for the towing industry.

Info and Specs:

Machined from 6000 series billet aluminum.

5/8 diameter Titanium double shear pin

4.5 inches tall, 5.25 inches in wide, 3.5 inch base diameter

Working Load Limit of 16,000 pounds

Ultimate failure of greater than 42,000 pounds

Fits all steel cables and synthetic ropes up to 3/8inch diameter

EPDM “Rubber Guard” protects alloy Hawse fairleads and cushions line stowage

Simple snap ring shear pin retainment
