RAM® Diamond Ball Base

OVERVIEW

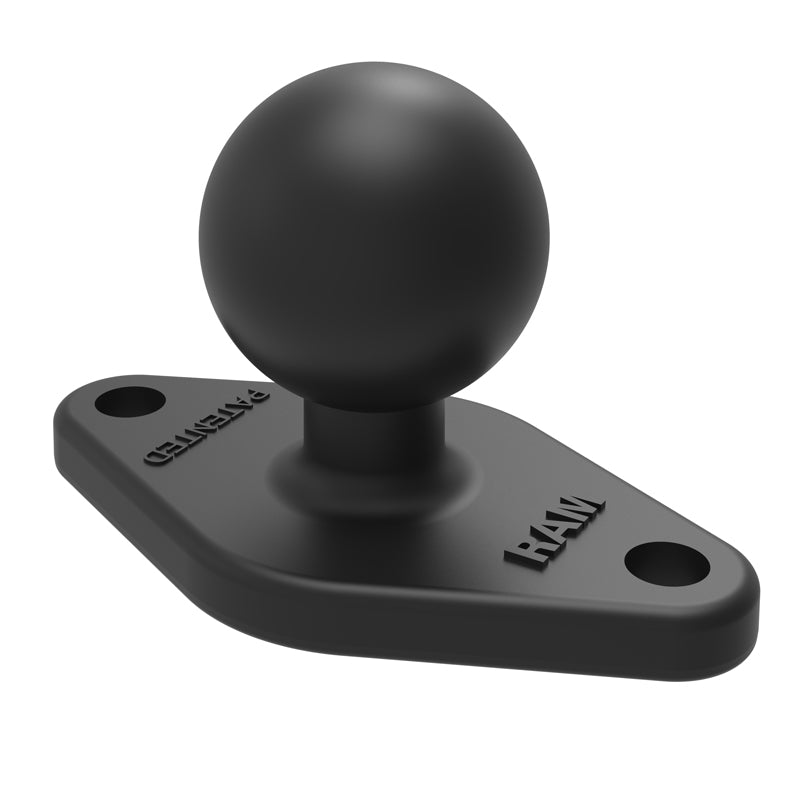

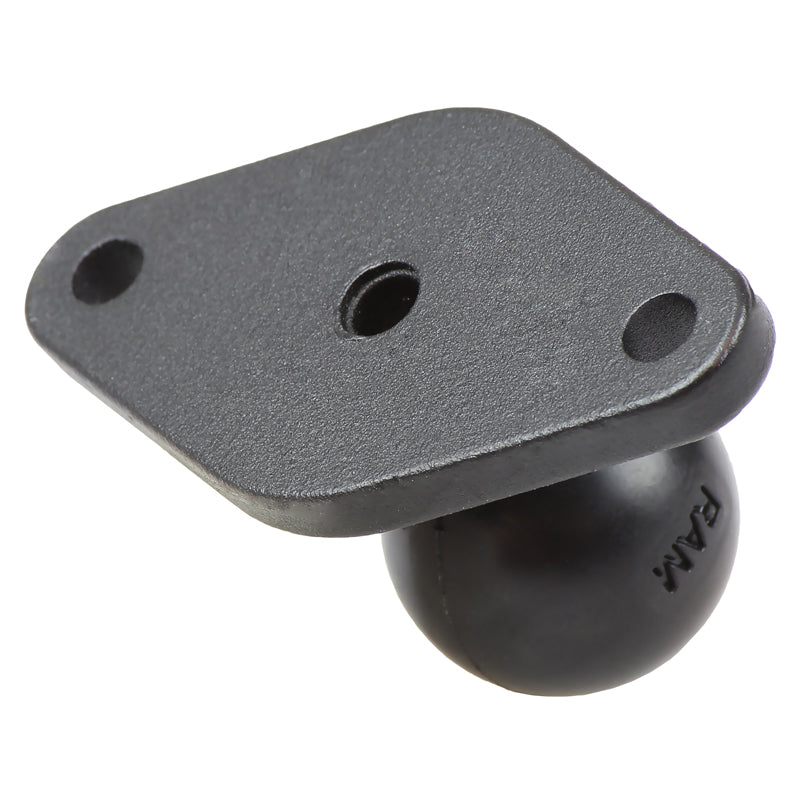

The RAM-B-238U ball base consists of a 1" B size rubber ball connected to a 2.43" x 1.31" diamond plate. The diamond plate features two holes that measure 1.912" from center to center, matching the industry-standard AMPS hole pattern. This diamond ball base is compatible with a wide variety of RAM® device holders and cradles.

FEATURES

  • Diamond plate features industry-standard AMPS hole pattern and measures 2.43" x 1.31"

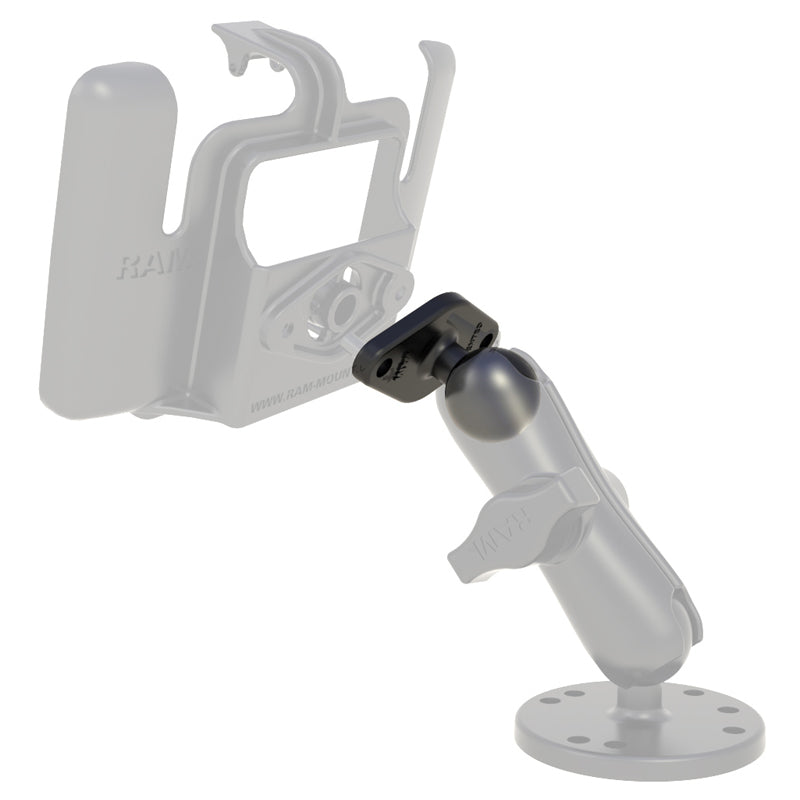

  • Compatible with several RAM® device holders and cradles; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

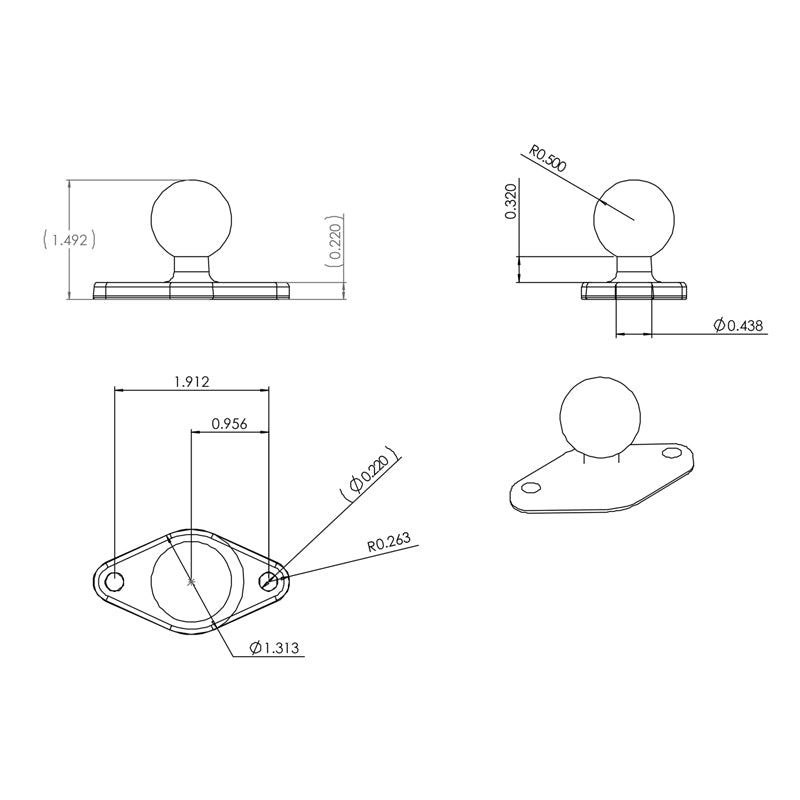

HOLE PATTERN

2-Hole AMPS: 1.912"

PLATE SIZE

2.43" x 1.31"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

2 lbs

MATERIALS

Marine-grade aluminum

WEIGHT

0.1 lbs.
$10.99
