Understanding Off-Road Alignments: Why Factory Specs Don't Work for Lifted Rigs

If you’ve recently installed a suspension lift, spent a weekend rattling down corrugated Forest Service Roads, or dropped a tire into a deep trail washout, you’ve probably felt the aftereffects in your steering wheel. Maybe the wheel sits slightly crooked while the truck tracks straight, or maybe your new set of mud-terrains is starting to show early signs of cupping along the outer tread.

Whether you’re wheeling a 3rd Gen Tacoma, a Ford Bronco, a Nissan Frontier, a Jeep Gladiator, or a full-size 1-ton tow rig, changing your ride height or pushing suspension components through heavy off-road use alters your front-end geometry.

Taking a lifted rig to a standard tire shop for an alignment often leads to frustration. Most high-volume tire centers perform a basic alignment by tweaking the tie rods just enough to hit the generic factory computer printout before rolling it off the rack. On a modified truck, that usually leaves the vehicle wandering across the highway at speed and wearing out expensive tires. To get a 4x4 handling predictably on and off the pavement, the alignment needs to be set up around how the suspension actually functions in the real world.

The Core Angles: Camber, Toe, and Caster

To understand why a lifted truck handles the way it does, you have to look at the three primary alignment angles. Standard alignment racks compare these numbers against stock factory baselines, but off-road setups require a different approach depending on lift height, tire size, and vehicle weight.

Camber

Camber is the inward or outward tilt of the tire when viewed directly from the front of the vehicle.

• Positive Camber: The top of the tire tilts outward away from the engine bay.
• Negative Camber: The top of the tire tilts inward toward the frame.

The Mechanical Reality: On an off-road build, the goal is to keep static camber as close to zero as possible. This keeps the tire’s full contact patch flat on the terrain. Too much positive or negative camber concentrates the truck’s weight on a small section of the tread, quickly destroying heavy-duty off-road tires.

Toe

Toe refers to the angle of the front tires relative to one another when viewed from directly above.

• Toe-In: The leading edges of the tires point inward toward each other.
• Toe-Out: The leading edges of the tires point outward.

The Mechanical Reality: Toe is the heaviest contributor to rapid tire wear and high-speed twitchiness. If toe is set incorrectly, the tires are essentially scrubbing sideways down the pavement instead of rolling cleanly. This creates diagonal feathering across the tread blocks and makes the steering feel nervous on straightaways.

Caster (The Key to High-Speed Stability)

Caster is the forward or rearward tilt of your steering axis when viewed from the side. For a visual, think of the wheels on the front of a shopping cart.

• Positive Caster: The top pivot point of the steering axis is tilted backward toward the driver.

The Mechanical Reality: This is where standard tire shops run into trouble with modified trucks. Lifting an Independent Front Suspension (IFS) vehicle like a Toyota Tacoma/4Runner, Ford Bronco, GM 1500, or Nissan Frontier naturally reduces positive caster. Low caster makes the steering feel light, floaty, and difficult to keep centered in a lane.

Adjusting caster higher than original factory specs (typically using aftermarket Upper Control Arms) restores high-speed stability and steering return-to-center. On many IFS platforms, adding positive caster also swings the front hub slightly forward within the wheel well. This moves 33-inch or 35-inch tires away from the body mount and firewall, solving tire rub without needing to chop into the cab mount.

Aligning Built Setups vs. Stock Templates

A major issue with standard shop computer systems is their reliance on stock factory templates. When a truck runs a solid axle swap, a custom long-travel kit, or aftermarket heim-joint steering, factory computer templates become completely irrelevant.

When you plug a custom build into a standard alignment machine, every measurement lights up red on the technician's screen. A machine doesn't know that an 80-Series Land Cruiser or a custom-linked Jeep needs specific caster angles to track correctly on large tires, nor does it understand how aftermarket Upper Control Arms shift the pivot geometry on a lifted Tacoma or Ford F-150.

Aligning a built rig isn't about chasing green boxes on a computer screen. It comes down to measuring the actual physical angles of the chassis, balancing lower control arm cam pivots with upper ball-joint adjustments, and setting geometry that accounts for actual weight distribution, armor, and suspension travel.

What Actually Happens on an Alignment Rack

Setting up geometry on a modified 4WD requires a mix of high-precision sensors and manual mechanical adjustments underneath the vehicle. Here is how the process works on the alignment rack at our Surrey, BC shop:

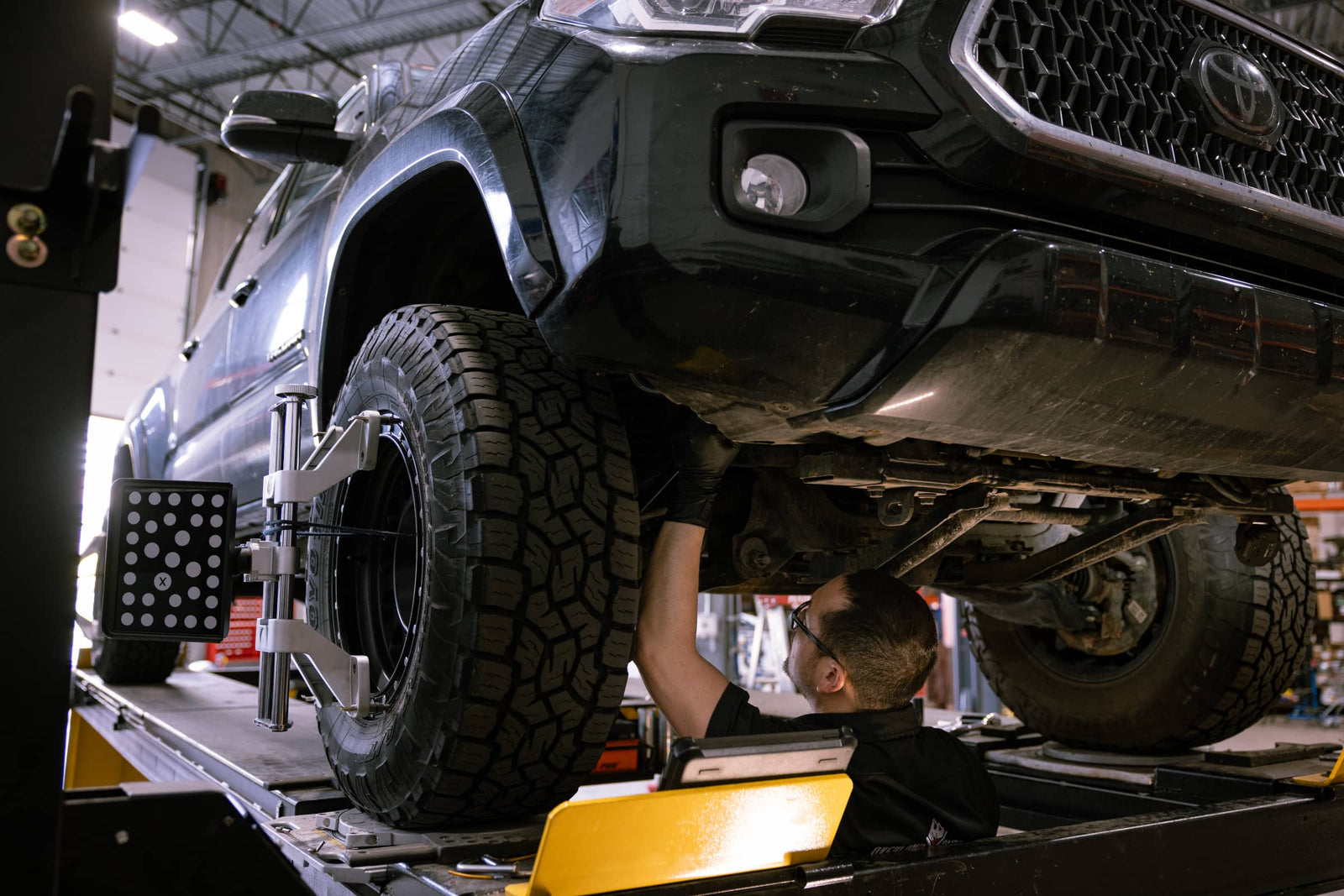

1. Mounting Target Reflectors: Non-marring target clamps attach directly to each wheel. An optical alignment tower fires calibrated beams at these targets to map the exact 3D position and angle of each hub in space.
2. Rolling Compensation: The vehicle is rolled backward and forward along designated precision marks on the rack. This accounts for minor wheel runout or clamping variances, giving the computer a true zero-point baseline for the chassis.
3. Locking the Brakes: The engine is started to charge the power brake booster before a mechanical lock is placed on the brake pedal. Holding the hubs completely stationary prevents rotation while high torque is applied to suspension bolts underneath.
4. Physical Adjustments: Technicians get under the rig with heavy hand tools to physically move lower control arm eccentric cams, fine-tune upper control arm mounts, and adjust tie rod lengths to set camber, caster, and toe simultaneously.
5. Real-World Test Drive: Computer screens only tell part of the story. Once hardware is torqued back to factory specifications, a road test verifies that the steering wheel is level on flat road surfaces and that the chassis tracks straight without drifting under hard braking.

Signs Your Rig Needs an Alignment

It’s worth getting your geometry checked whenever you encounter these common scenarios:

• Post-Lift Installation: Installing new coilovers, leaf springs, or control arms changes baseline angles immediately.
• Hard Trail Impacts: Slagging lower control arms on rocks or hitting severe washboard sections at speed can slip factory eccentric cams out of place.
• Uneven Tread Wear: If the inner or outer shoulders of your tires are wearing flat while the center remains deep, your camber or toe is out of spec.
• Off-Center Steering Wheel: A steering wheel that sits sideways while traveling straight indicates your toe settings or steering linkage have shifted.

Final Thoughts

A proper off-road alignment isn't about making a computer printout look neat. It's about making sure your vehicle drives predictably, handles high-speed transit sections safely, and doesn't destroy a set of expensive tires in 10,000 kilometers.

If you've recently upgraded your suspension or noticed your truck wandering across highway lanes, checking your geometry is the best place to start. If you're local to the Pacific Northwest, feel free to get in touch with our team to get your rig scheduled on the rack in our Surrey garage. If you're tackling your own build in the driveway, keep these geometric principles in mind before heading out on your next trail run.
