C4 Fabrication 2012-2015 Tacoma Overland Series Front Bumper
100% bolt-on design, no welding required
Minor trimming required
Bumper offers greatly improved tire clearance, better approach angle, and makes it easier to fit larger tires.
The bumper is made from 3/16″ laser-cut P&O steel with 1/4″ thick mounting plates.
3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.
Bull bar tubing is .120 wall, 1 3/4″ diameter HREW tubing.
Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (Smittybilt X20, Warn Zeon and VR series are all common winches that fit)

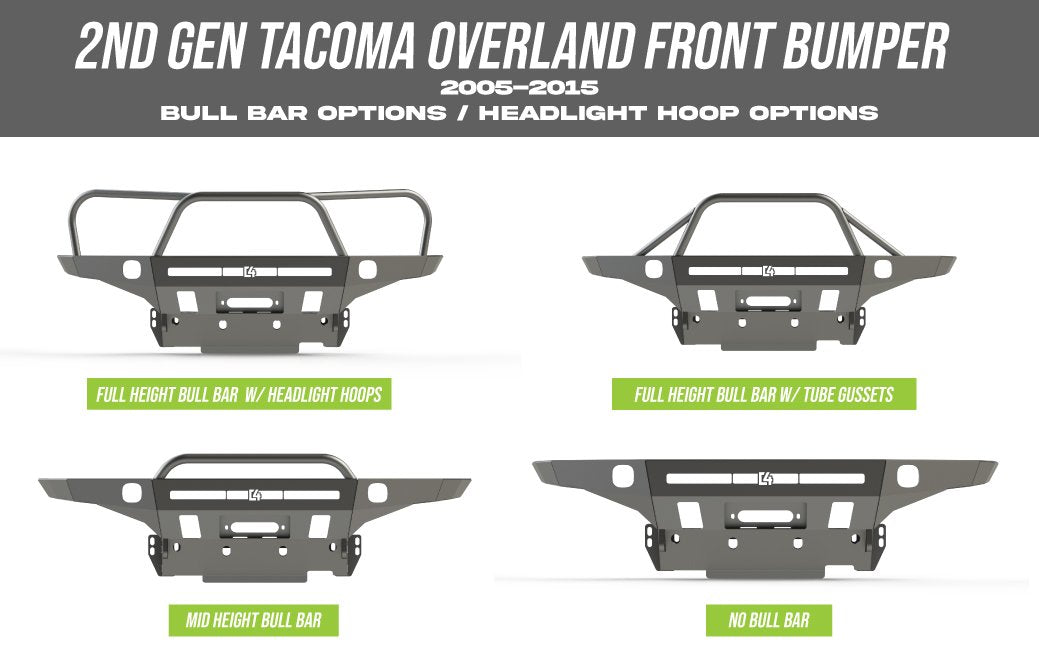

125lbs without Bull Bar
130lbs with Mid Height Bull Bar

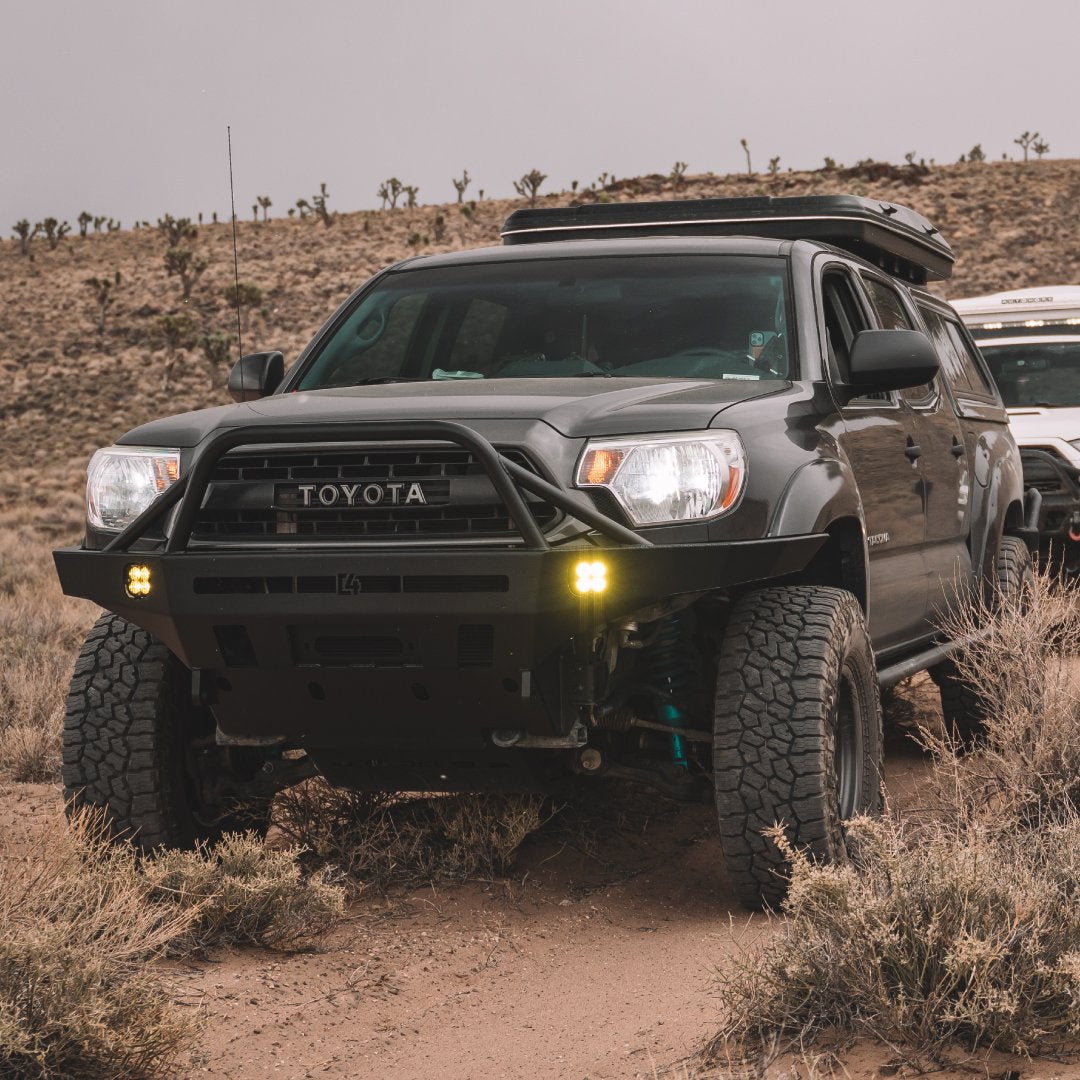

140lbs with Full Height Bull Bar with Tube Gussets
145lbs with Full Height Bull Bar and Headlight Hoops
Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar). Extreme LED 30″ 5D light bar and RIGID 30″ SR series will also fit. All other brands of lights not guaranteed to fit properly.
Fog light pockets designed for Baja Designs Squadron lights. (Factory fog lights not supported)
C4 Fabrication's Front Bumper Frame Support Brackets included!
Optional Hawse Fairlead Front License Plate Mount available
