C4 Fabrication 2014+ Tundra Hybrid Front Bumper

Regular price$2,374.99
/

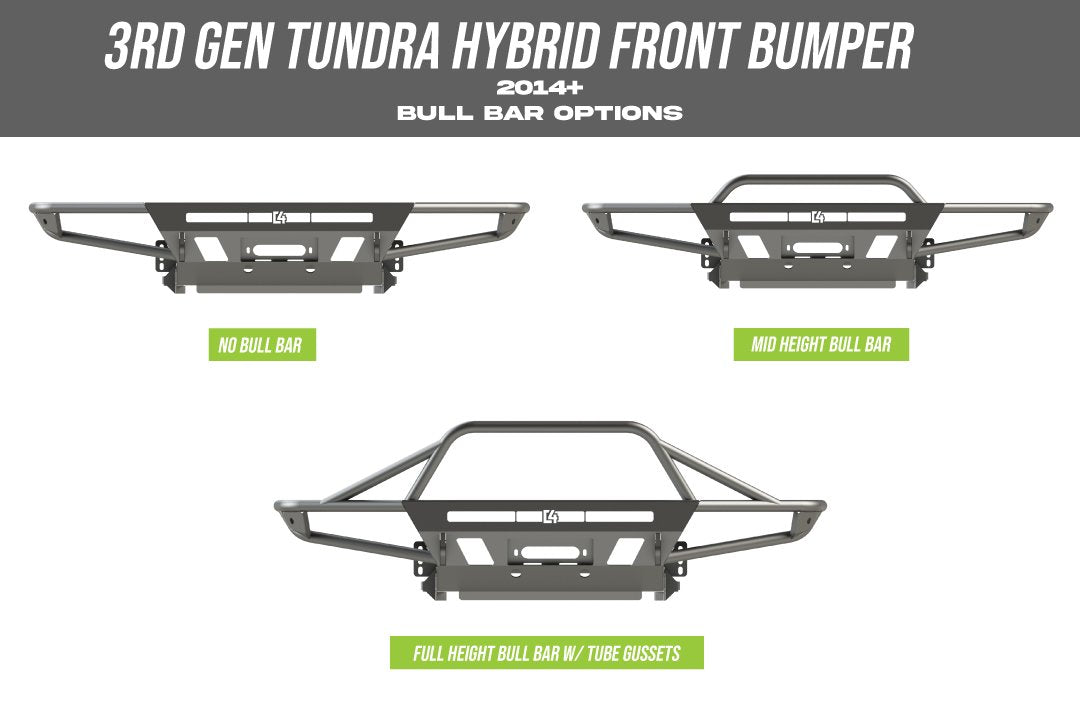

Bull Bar
Parking Sensor Equipped
Hawse Fairlead License Plate Mount

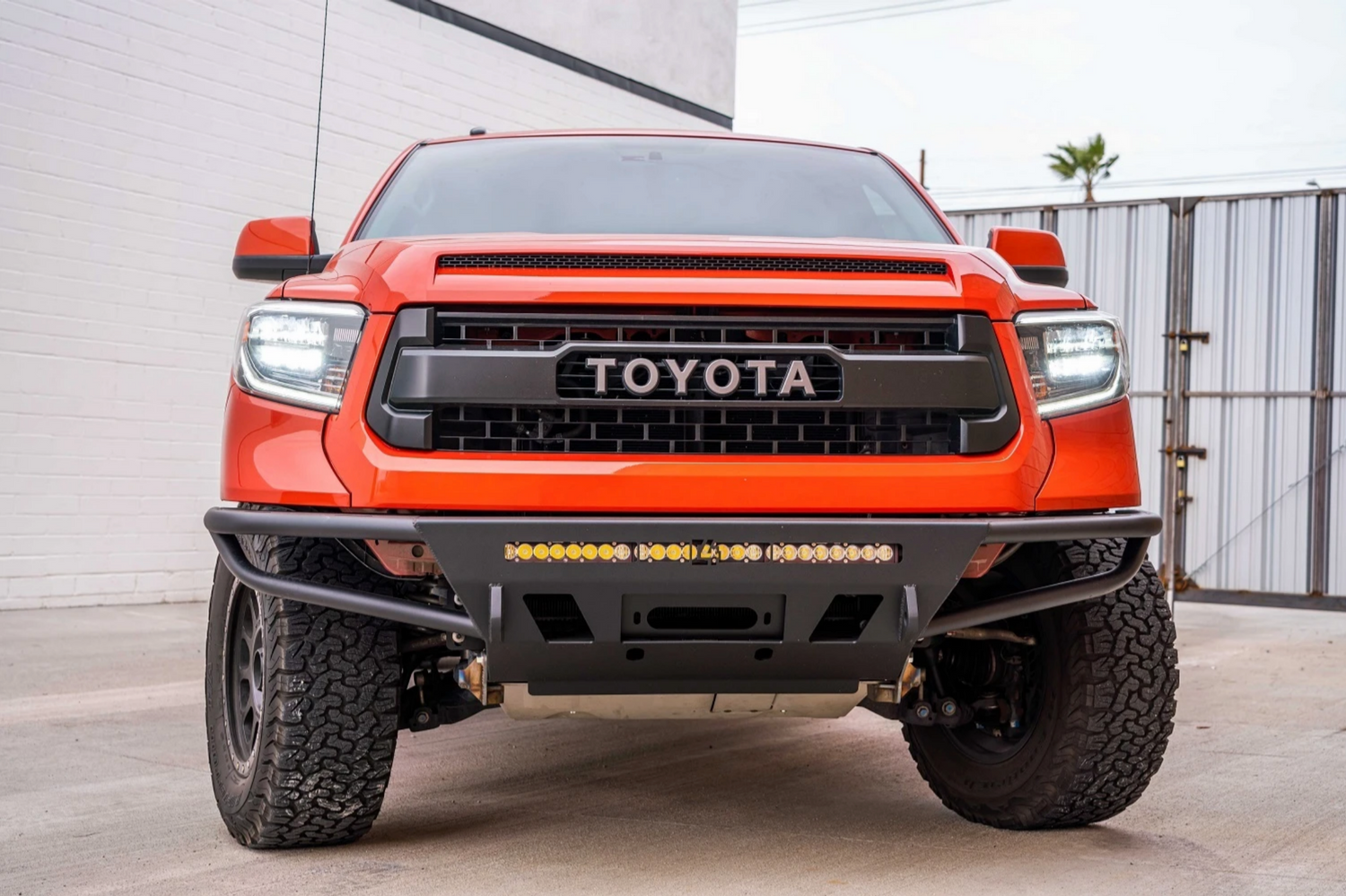

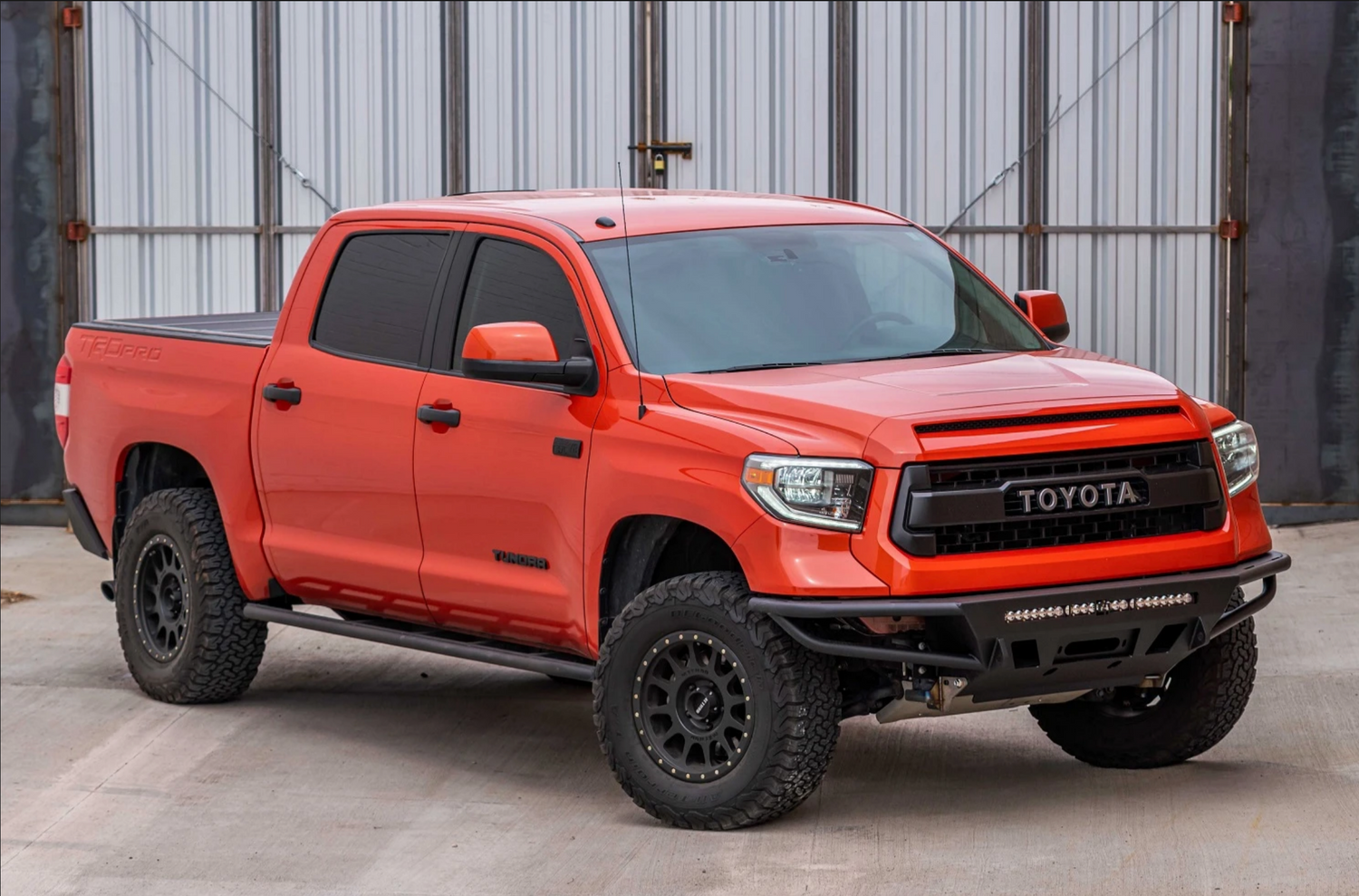

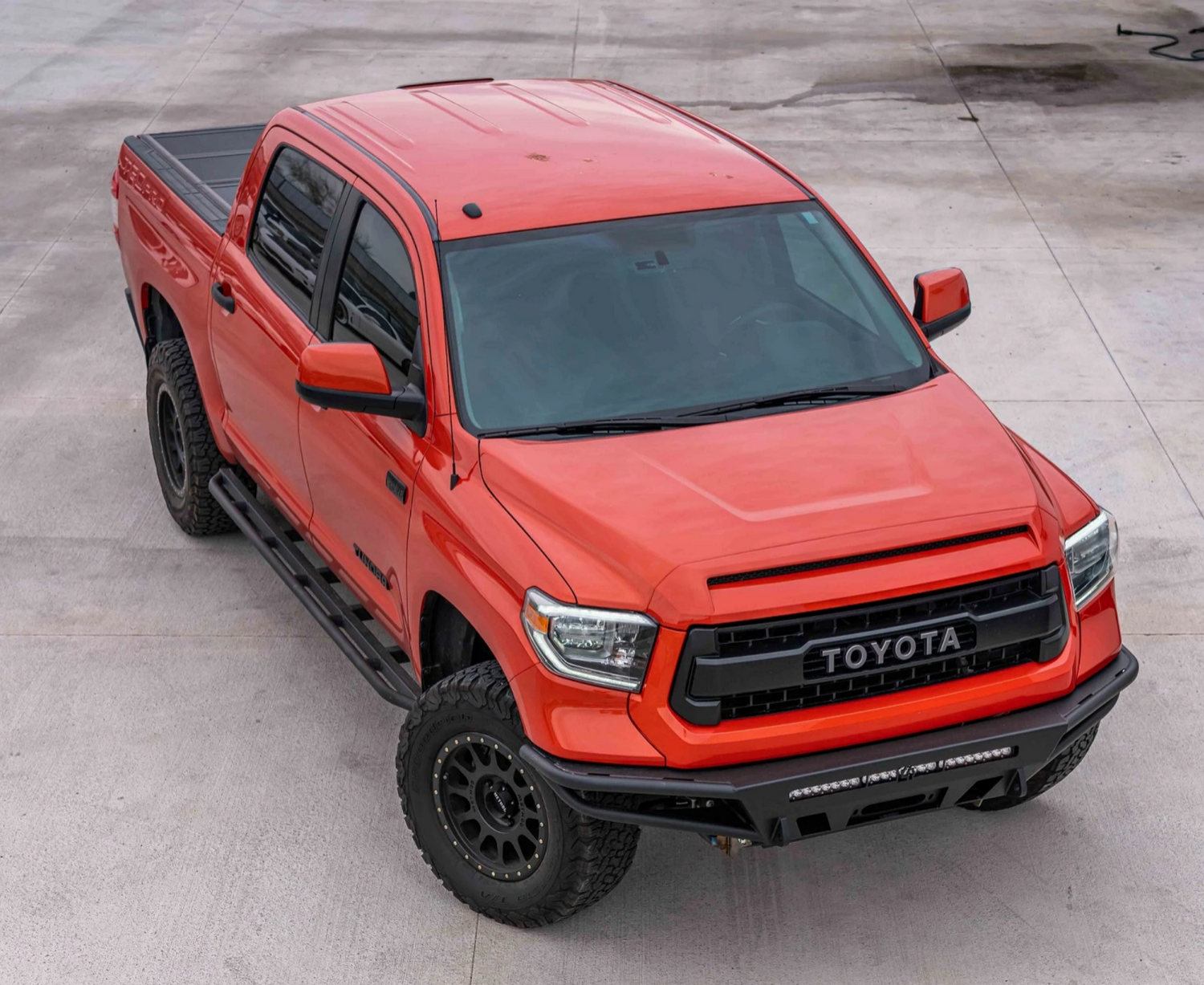

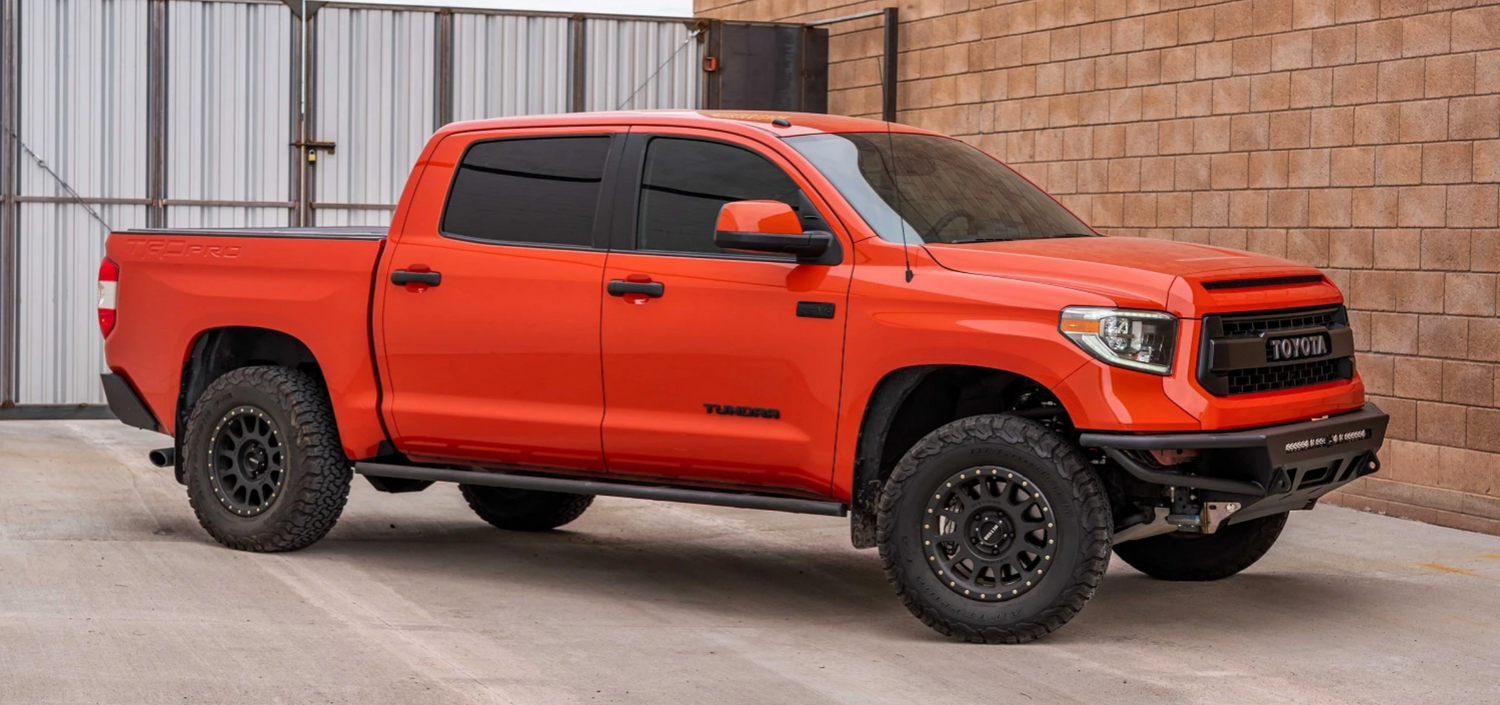

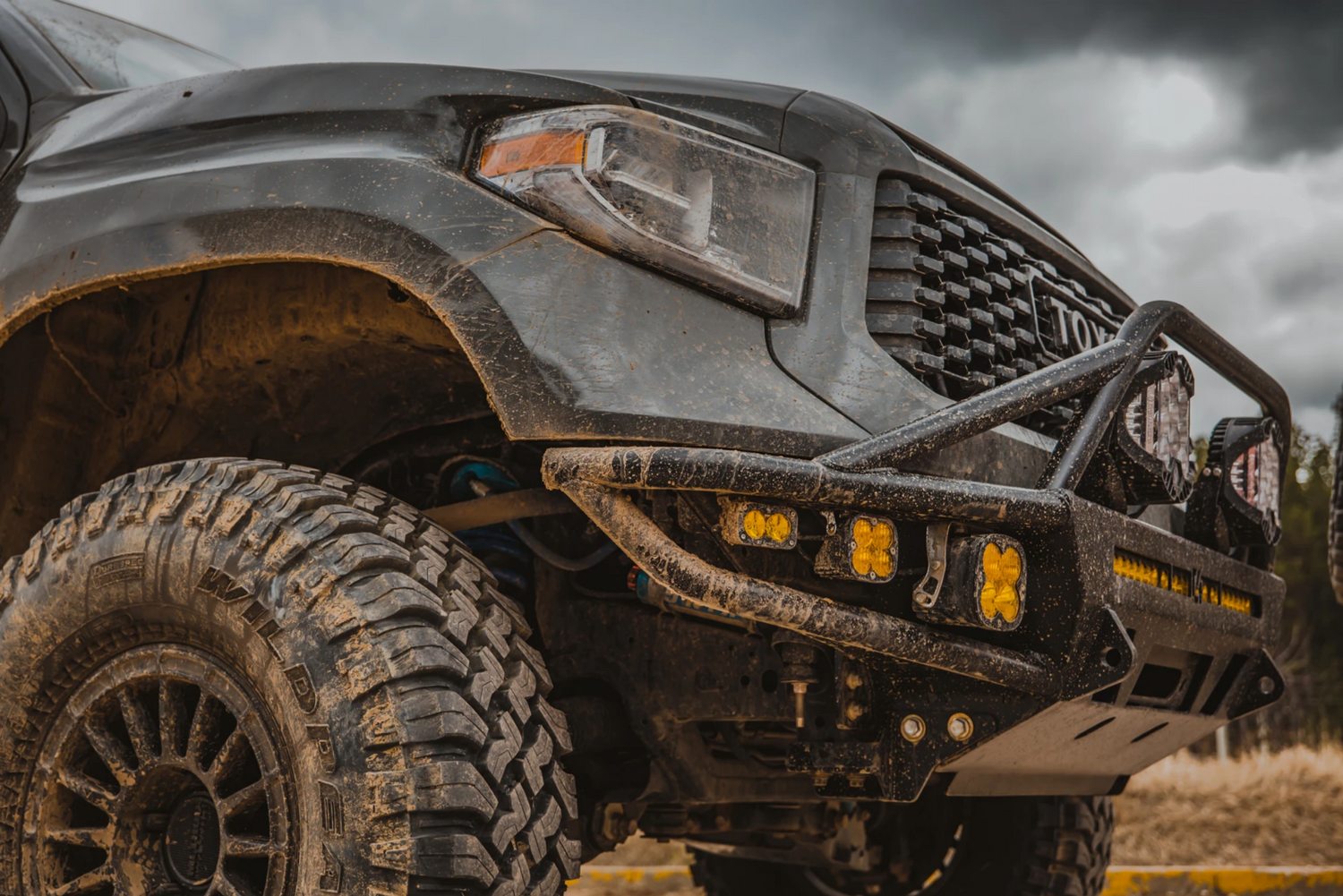

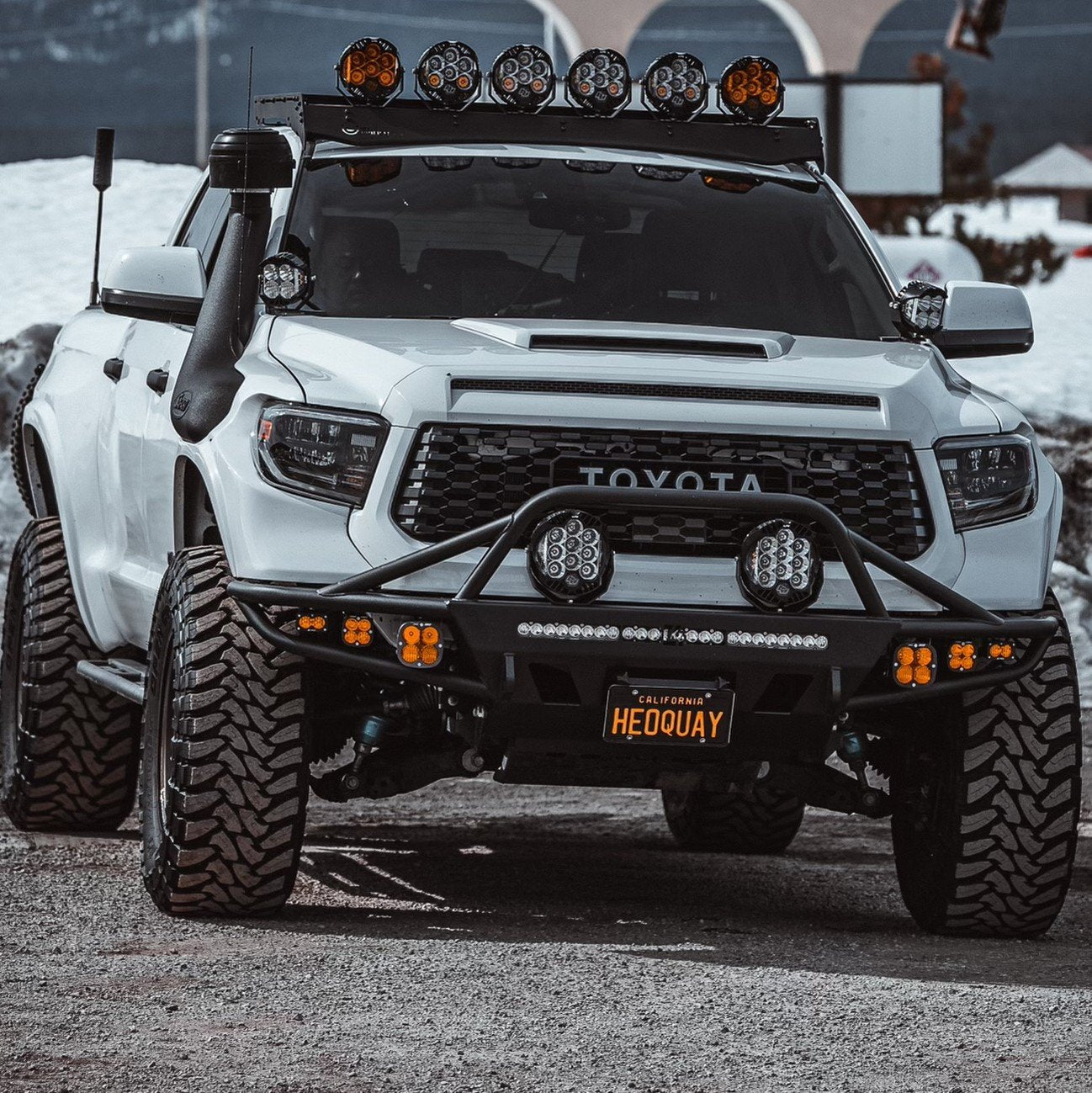

C4 Fabrication's 2014+ Tundra Hybrid bumper is a unique combination of a plate steel center with round tube on the sides. This design allows you to achieve a “lighter” look while gaining the ability to mount a winch, LED light bar, and multiple combinations of fog lighting in the tube area.

  • This bumper is a direct bolt-on application. No cutting or modifications needed!
  • Offers more clearance for a better approach angle, and makes it easier to fit larger tires.
  • Center portion is made from 3/16″ laser-cut P&O steel with 3/8″ thick mounting plates And 1/4″ winch mounting plate.
  • 3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.
  • Tube portions are .120 wall 1 3/4″ diameter HREW tubing.
  • Fits most winches 8k-12k in size. Winches with the ability to relocate the electrical control box are recommended. Integrated control box winches may require some trimming of the grille support brackets to fit. (Smittybilt X20, Warn Zeon and VR series are all common winches that fit)
  • Bumper is designed to fit 30″ single row light bars (specifically designed for Baja Designs S8 light bar).
  • Bumper works with TRD Pro, and aftermarket skids.
  • Weight:
    • No Bull Bar: 150lbs

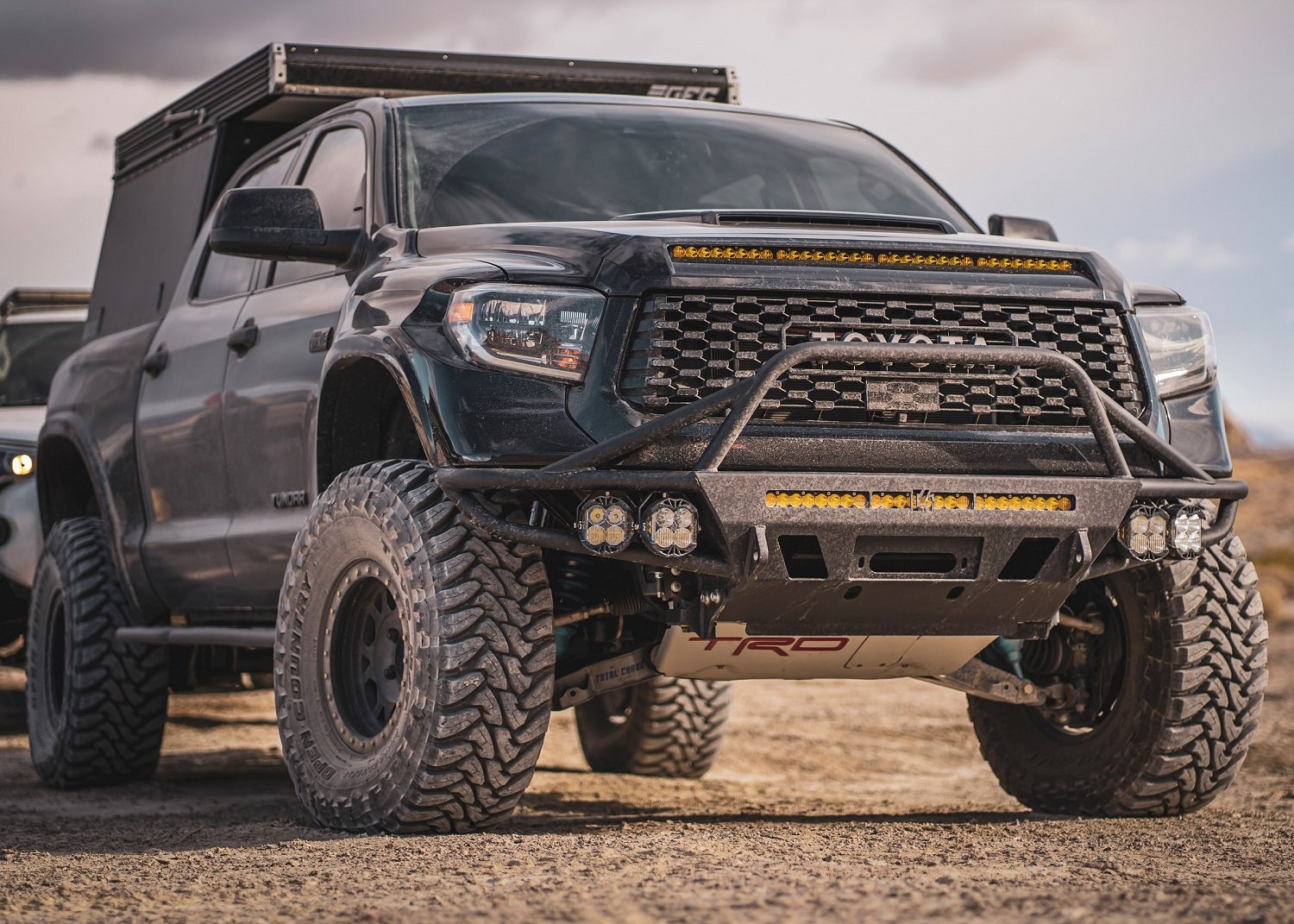

    • Full Height Bull Bar: 165lbs
    • Optional Hawse Fairlead License Plate Mount available:
    • "Wide" option available for trucks with fiberglass fenders. Contact us directly to order!
    • Toyota Safety Sense (TSS) Compatibilty:

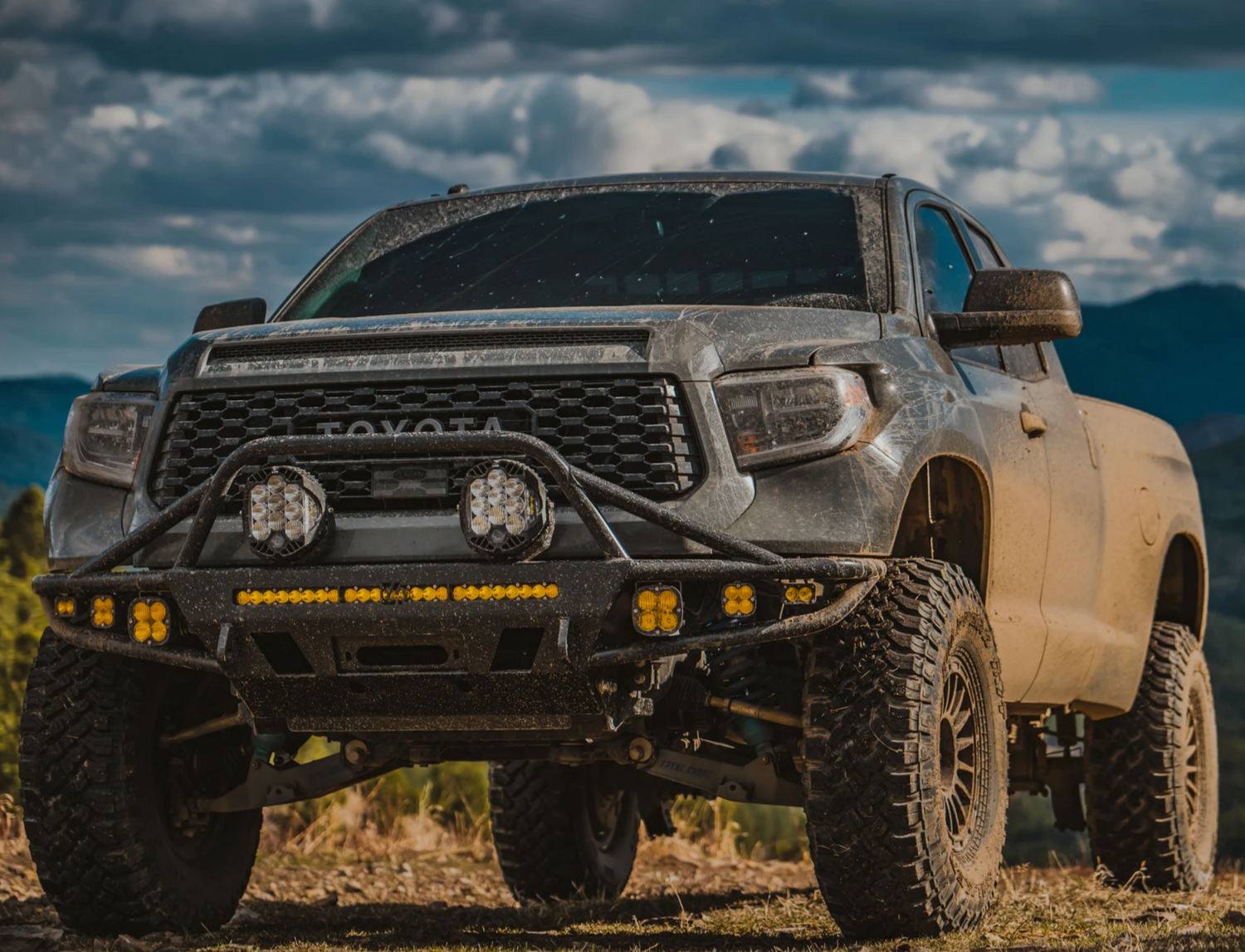

      • Mid Height Bull Bar is compatible with all models
      • Full Height Bull Bar works with TRD Pro grilles only. Models with regular grilles are not compatible.

    *Powder coating available once landed at our shop, ships as bare steel*
