Cali Raised LED | SKU: CR2446

Cali Raised Wiring Harness for Dual Function Light Bar

$130.00 CAD

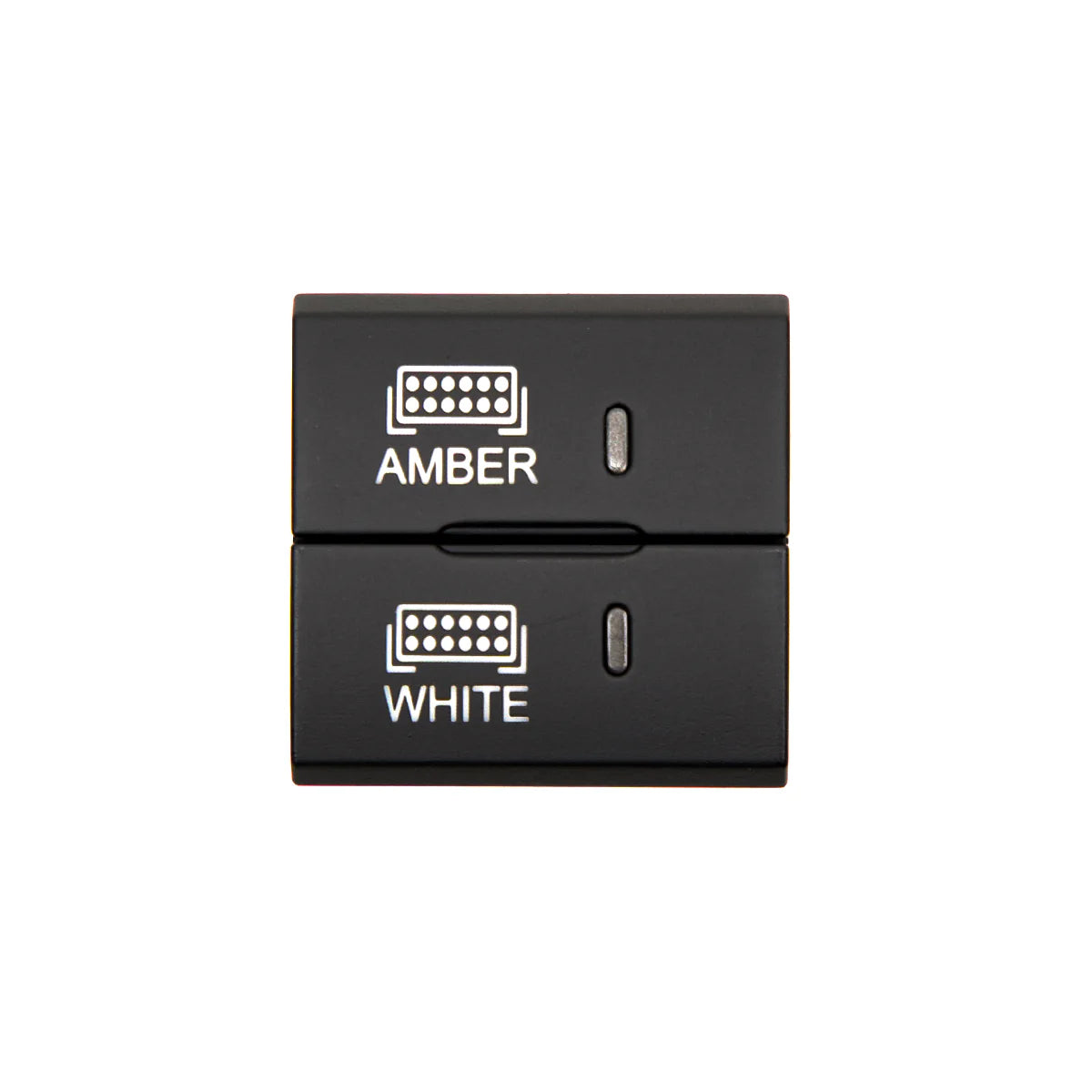

Switch Style/Size

Short Tall Square

Cali Raised Wiring Harness for Dual Function Light Bar - Short is a special order or built to order item, and will ship once received at our warehouse. Production and shipping times vary by manufacturer - Contact us for details.

Pay Over Time

Delivery and Shipping

We're committed to getting your gear to you as quickly and safely as possible and do our best to ship all in-stock items within 2 business days of the order date.
Please review our full Shipping Policy for more details.

Please note, many of the high-quality, specialty products we sell are built-to-order by the manufacturer, meaning there is an additional wait time before the item is even shipped to us or directly to you.
For a list of current lead times by manufacturer, please visit our Manufacturer Lead Times page.

Questions?

Call us at 778-547-2444
Monday-Friday | 9am-5pm PST

Or fill out our contact form below.

Description

Stop wrestling with wiring and take full advantage of your multi-mode lighting. The Cali Raised LED Dual-Function Wiring Harness is the essential bridge between your battery and your dual-output light bar. Instead of trying to hack together two separate harnesses, this all-in-one solution provides a clean, safe, and professional way to trigger both functions independently.

Dual-function light bars are great for unpredictable weather with white light for clear nights and amber for the fog and dust on the FSRs. However, wiring them can be a nightmare. This harness is specifically designed with two separate trigger leads, allowing you to run each mode to its own switch while keeping the heavy power draw safely managed through high-quality relays.

Key Features

Dual-Circuit Design: Purpose-built to power and control two separate functions within a single light bar housing.
Heavy-Duty Protection: Equipped with 40A relays and 30A inline fuses to protect your vehicle’s expensive electrical system from surges.
Plug-and-Play Compatibility: Features the standard DT connectors used on most Cali Raised LED dual-function bars for a secure, waterproof connection.
Braided Looms: The wiring is wrapped in a durable, heat-resistant braided sleeve to prevent chafing and provide a clean look under the hood.
Generous Length: Plenty of slack to reach from your battery to your bumper or ditch light locations on most trucks and SUVs.

Specifications

Technical Specifications
- Voltage: 12V DC.
- Relays: 2x 40A Waterproof Relays.
- Fuses: 2x 30A Inline Blade Fuses.
- Switch Leads: Two independent trigger wires (ready to connect to your OEM-style switches).
- Connectors: Dual-output DT style.
Installation Information
- DIY Installation: This harness simplifies the process significantly. Connect the rings to your battery, mount the relays to the inner fender, and run the triggers through the firewall to your switches.
