Eimkeith 01-07 Sequoia Panhard Correction Kit
These are weld-on bracket kits (one Panhard Lift Bracket) to correct the angle of the panhard bar on 2-3" lifts.

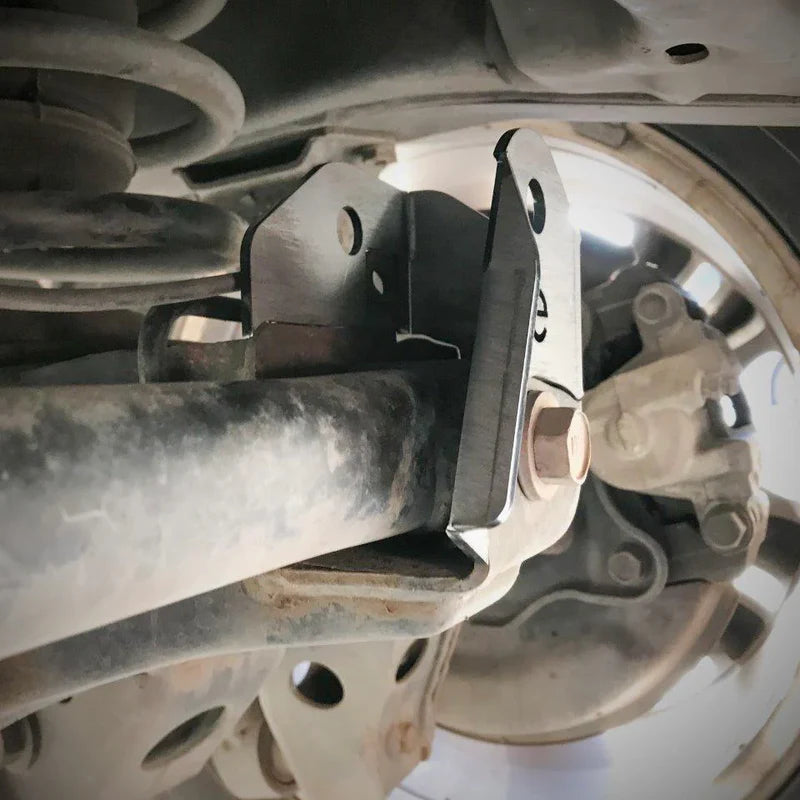

The axle-end (lift) bracket is cut from 3/16" plate to match the thickness of the factory mount and contoured for easy alignment to the existing axle mount with minimal fitting
The lift bracket raises the axle-end of the panhard bar 2 inches by itself, without interfering with the frame under full flex with factory bumpstops in place.

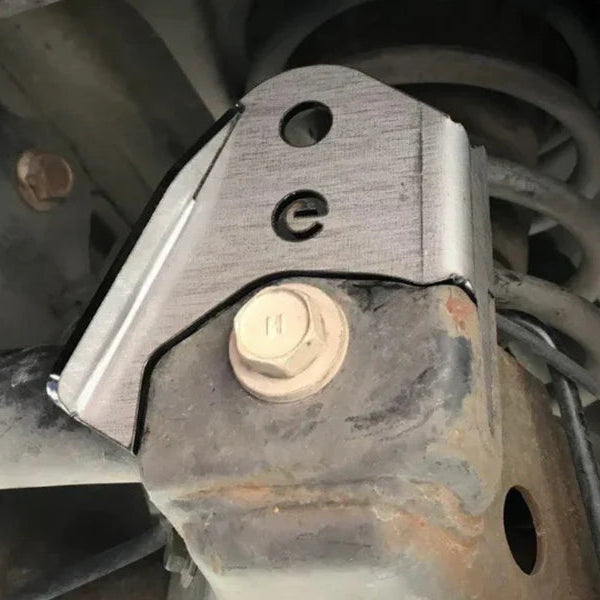

It is contoured for slide-over alignment with the existing frame mount with minimal fitting, using the factory pivot bolt hole for proper location. The drop bracket also includes two 3mm hardened steel spacers to retain the factory mount inner diameter.
The Panhard Correction Kit returns the panhard bar to horizontal (per original design), eliminates the need for an aftermarket adjustable panhard bar to recenter the axle, and in most cases (up to 4 inches of lift) raises the roll center for improved handling (4-4.5 inch lift maintains the roll center of an adjustable panhard.
