JD Fabrication Tacoma Double Shear Steering Gusset & Heim Kit

*Can have a 6+ week lead time if out of stock.*

  • YEAR- 2005-2015 and 2016+
  • MODEL- Second Generation Tacoma 2wd and 4wd 6 lug

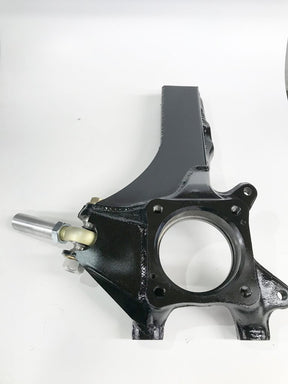

We now have a double shear steering kit available for the 05-15 Tacoma 2/4wd 6 lug spindles.  A combination of 3/16" and 1/8" plates are laser cut and bent for a perfect fit.  This kit allows you to eliminate the stock outer tie rod and replace it with a 3/4" heim joint that attaches to the spindle with a 5/8" grade 8 bolt.  The laser cut plates are then welded to the spindle in order to capture the heim joint on the other side thus creating the double shear.

All kits include the double shear plates, 3/4" heim joints, misalignment spacers, jam nuts, steering extensions and necessary 5/8"hardware.

This kit requires welding along with reaming the stock spindle steering arm taper to 5/8"



$499.00

JD Fabrication Tacoma Double Shear Steering Gusset & Heim Kit JD Fabrication Tacoma Double Shear Steering Gusset & Heim Kit JD Fabrication Tacoma Double Shear Steering Gusset & Heim Kit JD Fabrication Tacoma Double Shear Steering Gusset & Heim Kit
JD Fabrication Tacoma Double Shear Steering Gusset & Heim Kit JD Fabrication Tacoma Double Shear Steering Gusset & Heim Kit JD Fabrication Tacoma Double Shear Steering Gusset & Heim Kit JD Fabrication Tacoma Double Shear Steering Gusset & Heim Kit
$499.00
$499.00

*Can have a 6+ week lead time if out of stock.*

  • YEAR- 2005-2015 and 2016+
  • MODEL- Second Generation Tacoma 2wd and 4wd 6 lug

We now have a double shear steering kit available for the 05-15 Tacoma 2/4wd 6 lug spindles.  A combination of 3/16" and 1/8" plates are laser cut and bent for a perfect fit.  This kit allows you to eliminate the stock outer tie rod and replace it with a 3/4" heim joint that attaches to the spindle with a 5/8" grade 8 bolt.  The laser cut plates are then welded to the spindle in order to capture the heim joint on the other side thus creating the double shear.

All kits include the double shear plates, 3/4" heim joints, misalignment spacers, jam nuts, steering extensions and necessary 5/8"hardware.

This kit requires welding along with reaming the stock spindle steering arm taper to 5/8"
