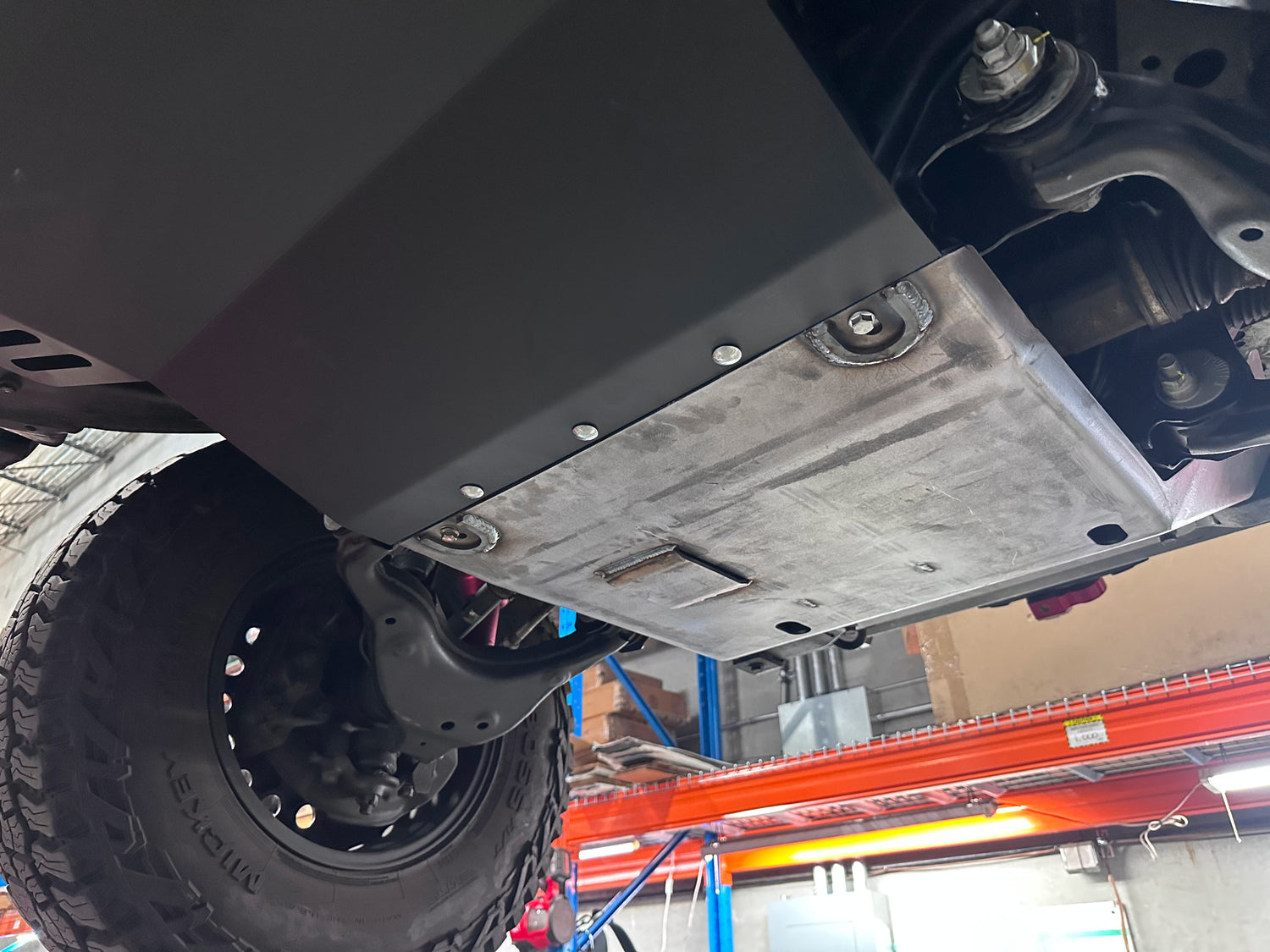

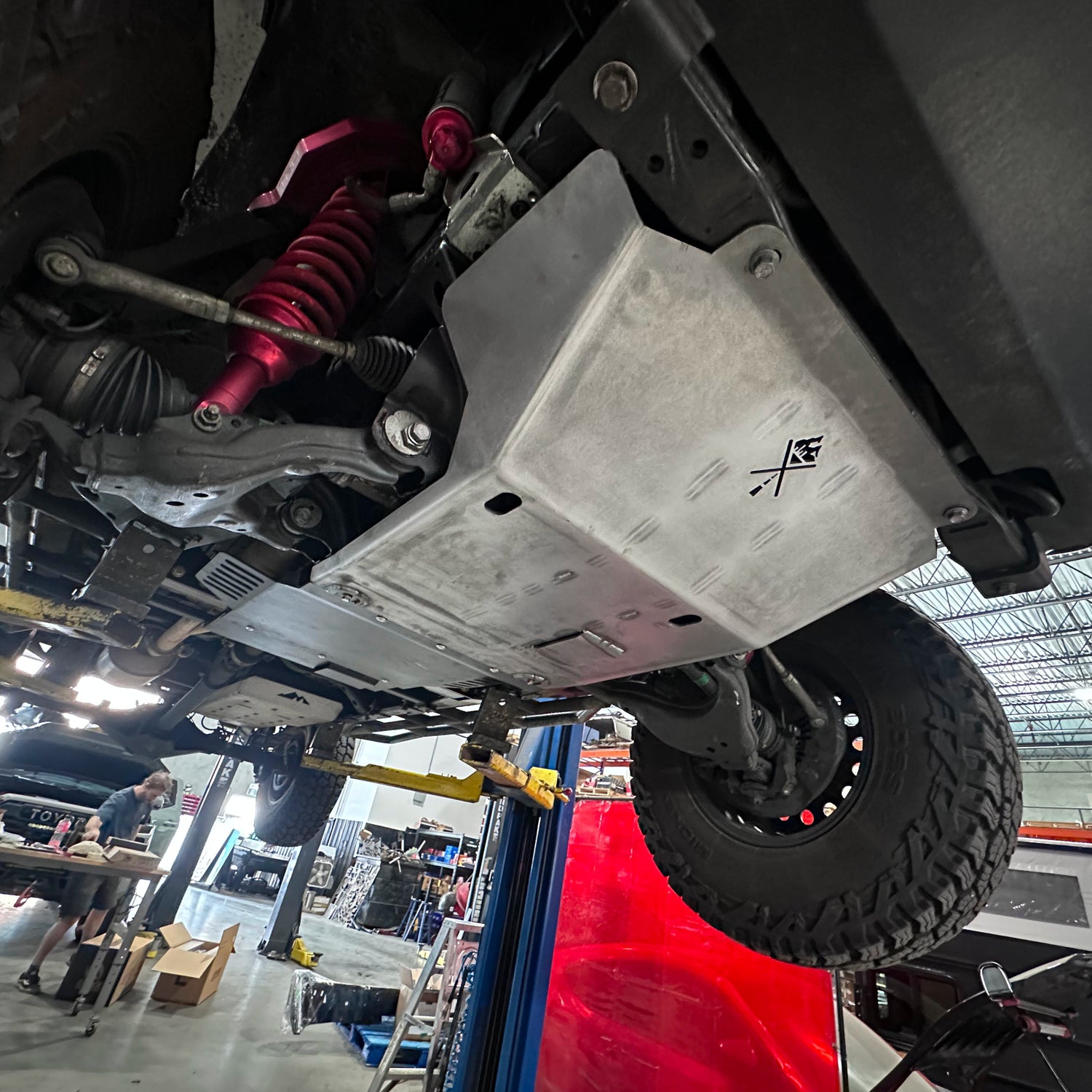

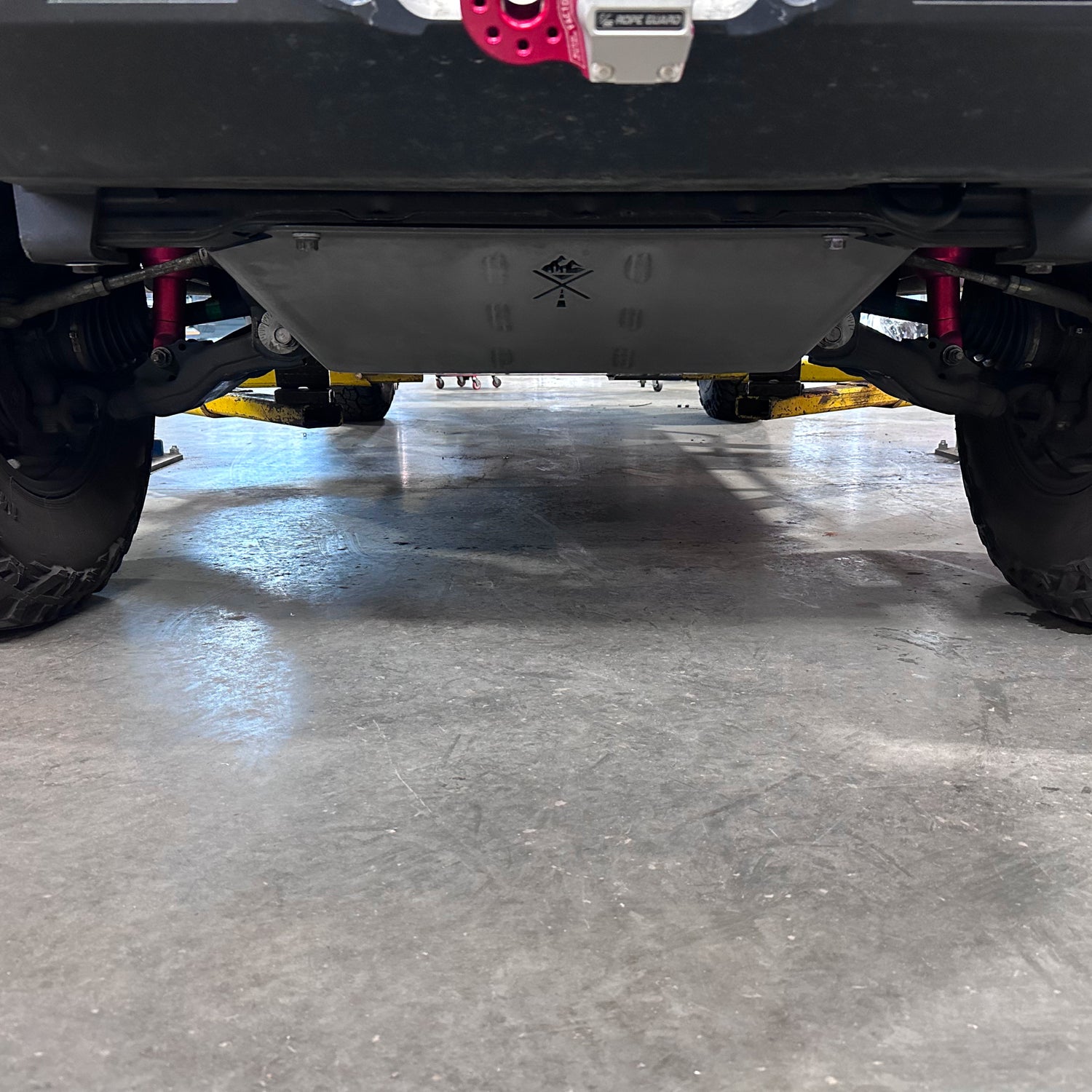

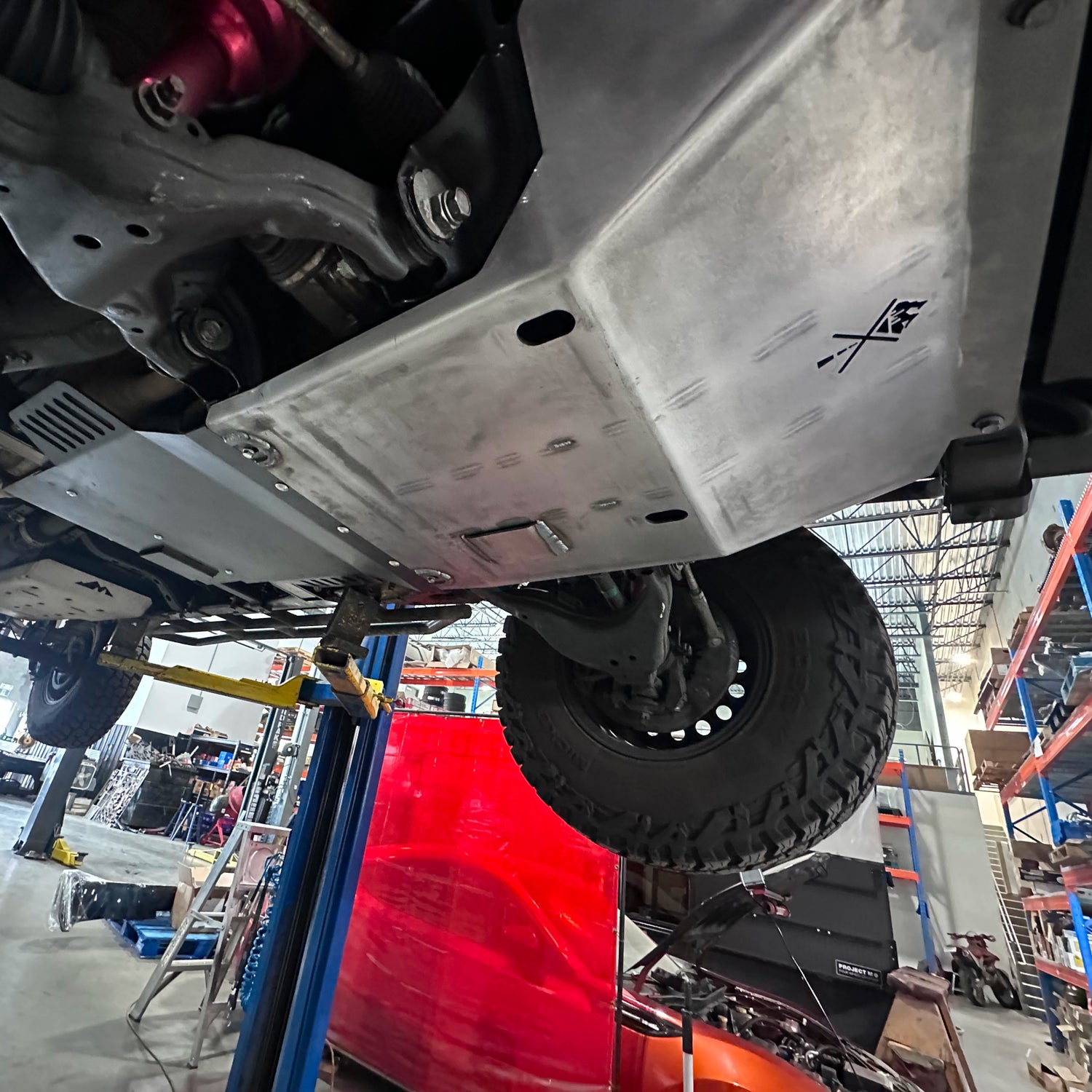

O2 Fabrication 2016-2023 Toyota Tacoma High Clearance Front Skid Plate

We designed the O2 Fabrication High Clearance Front Skid Plate in-house at our Surrey, BC shop so you can avoid getting hung up on rocks. By tucking the plate tight against the chassis, eliminating the need for a differential drop, and trimming the factory jacking pad, this skid plate reclaims approximately 1.25 inches of vital clearance over standard aftermarket options. It gives your rig the approach geometry of 35-inch tires while running 33s; Sparing you the drawbacks of increased rotational mass and the extensive modifications needed to fit larger rubber. Built to integrate seamlessly with the O2 Fabrication Flat Belly Kit, it delivers smooth, continuous protection from the radiator to the transfer case.

Key Features

• Maximized Ground Clearance: Recovers 1.25 inches of clearance compared to competitor's skids, keeping your chassis off the rocks and your truck moving forward.
• Structural Rigidity: Cut from 3/16” steel and reinforced with full-length welded ribs to prevent deflection when the weight of your Tacoma comes down hard on an obstacle.
• Snag-Free Sliding: Smooth transitional surfaces and recessed, protected hardware prevent bolts from shearing off or catching on the trail.
• Expanded Engine Protection: Tall side flanges deflect debris and guard vulnerable engine components from lateral impacts.
• Seamless Integration: Designed to pair perfectly with our O2 Fabrication Flat Belly Kits and mounts utilizing the factory frame hole locations.

What’s Included

• 1x O2 Fabrication High Clearance Front Skid Plate
• 4x M12 x 1.25 - 25mm Hex Bolts
• 2x M8 x 1.25 x 25mm Flanged Hex Bolts

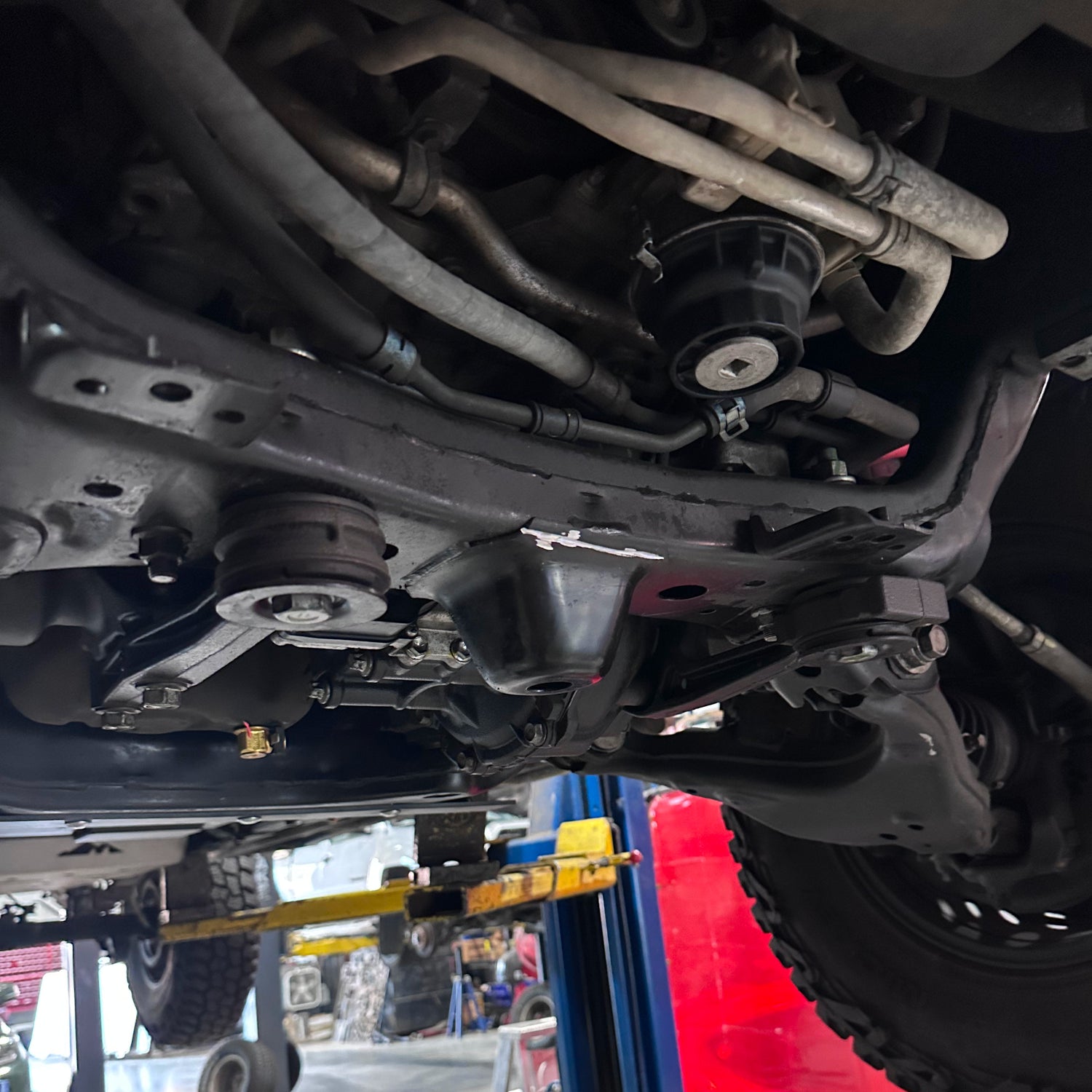

Pro Tip: Maximizing this much clearance means the factory front crossmember jacking pad needs to be cut off during installation, and you cannot run a diff drop. Don't sweat the jacking pad removal, this trail-tested 3/16” reinforced steel skid is more than strong enough to support the weight of your truck when you need to put a floor jack under the front end.
