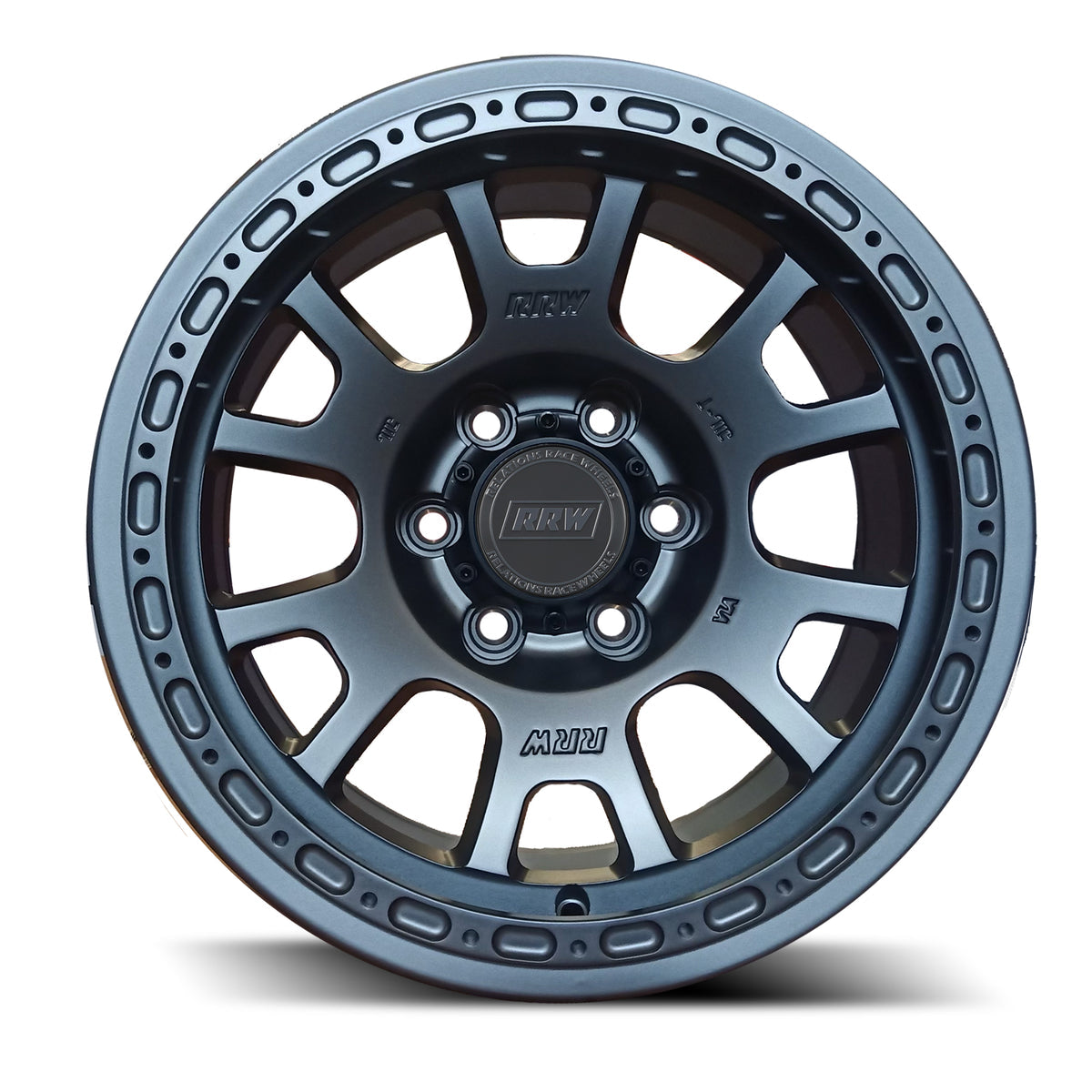

Relations Race Wheels RR5-H 17x8.5 (6x5.5 I 6x139.7) Hybrid Beadlock Toyota Tacoma/4Runner

Relations Race Wheels RR5-H 17x8.5 (6x5.5 I 6x139.7) Hybrid Beadlock Toyota Tacoma/4Runner

Regular price$597.99 CAD

Size I Bolt Pattern I Offset

Relation Race Wheels' best-selling hybrid wheel is now available in their flagship RR5 design. Run the RR5-H as is or upgrade the protection and function of the wheel by adding a protection ring or beadlock ring. Customize the wheel for your needs.


Size: 17x8.5
Offset: 0 / -12 / -25
Bolt Pattern: 6x5.5 / 6x139.7
Center Bore: 106.1mm (hub-centric for Toyota trucks)
Load Rating: 2500 lbs
Backspacing: 0 is 4.75" / -12 is 4.28" / -25 is 3.77"
Compatible with TPMS and Extended Thread (ET) Lugs


  • Add accessory bolts only in black or gold finishes
  • Add Protection Rings
    • Protection Rings can be replaced once worn if heavily damaged
  • Add a Forged Beadlock Ring made of aluminum that includes longer grade 10.9 bolts.
    • The beadlock ring is intended for offroad use ONLY



Manufactured in a JWL/VIA Certified Facility and tested to meet and exceed OEM specifications

RR5-H with the true beadlock ring is for offroad use ONLY and NOT street use.

Note: RR5-H photos are for reference only. Additional photos of each finish will be uploaded soon
